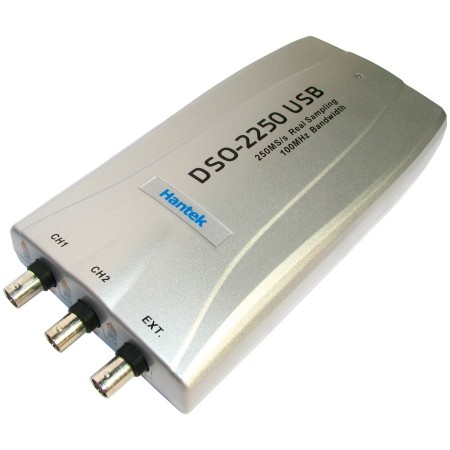

Osciloscopio USB 100Mhz 2 canales
Osciloscopio digital USB de dos canales. No necesita alimentación externa, se alimenta directamente por USB lo que permite ser utilizado para trabajo de campo.
CONSULTE STOCK ANTES DE OFERTAR; SI BIEN LA ROTACIÓN DE ESTE PRODUCTO ES CONTINUA; PUEDE QUE TENGA QUE ESPERAR 15 DÍAS PARA LA ENTREGA.
Utiliza la PC como interfaz grafica.
Alta performance, 250MS/s muestreo en tiempo real y ancho de banda de 100MHz.
- Interface USB2.0, no necesita fuente de alimentacion, facil de usar.
- Adecuado para usar con cualquier PC de escritorio o laptop.
- Facil de transportar.
- Medidas (mm): 190x100x35.
- Alta performance, muestreo en tiempo real 150MS/s, 60MHz Bandwidth.
- Sistema operativo: Windows 98, Windows ME, Windows NT, Windows 2000, Windows XP, Vista, Windows 7, Windows 10
- 23 funciones de medición.
- Apto para aplicaciones tecnicas.
- Promedio de forma de onda, persistencia, intensidad, inversión, adición, sustracción, multiplicación, división, grafico X-Y.
- Permite guardar la forma de onda como: Archivo de texto, archivo grafico JPG/BMP, MS Excel / word.
- Mas de 23 funciones de medición.
- Pueden conectarse mas de un equipo a la misma PC extendiendo facilmente la cantidad de canales.
- Librerias para diseño de software e integración:
Labview VB VC Delphi C++ Builder.
| Canales | 2 Canales | |
| Ancho de banda | 100MHz | |
| Frecuencia de muestreo | 250MS/s | |
| Impedancia | 1MΩ 25pF | |
| Conexiones | AC/DC/GND | |
| Resolucion vertical | 8Bit | |
| Rango de ganancia | 10mV-5V, 9Pasos | |
| Tensión de entrada máx. | 35V | |
| Precision DC | ±3% | |
| Rango de tiempo base | 4ns-1h, 38 Pasos | |
| Vertical ajustable | Si | |
| Proteccion de entrada | Diode clamping | |
| X-Y | Si | |
| Autoset | Yes (30Hz to 100MHz) | |
| Entrada EXT. | Si | |
| Modos de gatillo | Auto, Normal and Single | |
| Inclinaciones de gatillo | +/- | |
| Nivel de gatillo ajustable | Si | |
| Tipo de gatillo | Rising edge, falling edge | |
| Fuente de gatillo | CH1, CH2, EXT | |
| Pre/Post Gatillo | 0-100% | |
| Tamaño de bufer | 10K-512KB/Canal | |
| Ancho de banda de toma | DC to 100MHz | |
| Seleccion de muestras | Yes | |
| Display de ondas | port/line, waveform average, persistence, intensity | |
| Network | Abierto/Cerrado | |
| Modo vertical | CH1, CH2, Dual, ADD | |
| Medida de cursor | Yes | |
| Math | FFT, addition, subtraction, multiplication, division. | |
| Cursor | Frecuencia, Voltaje | |
| Muestras de Datos | 10K-512K/Channel |
