Osciloscopio USB 2 canales 200MHz 250MS/s Hantek 6212BE
Excelente Relación coste-eficacia, alcance de 200 MHz de ancho de banda de 2 canales, velocidad de muestreo 250MSa/s, Interfaz Estándar USBXI (TM) , facìl conexión en USBXI (TM).
CONSULTE STOCK ANTES DE OFERTAR; SI BIEN LA ROTACIÓN DE ESTE PRODUCTO ES CONTINUA; PUEDE QUE TENGA QUE ESPERAR 15 DÍAS PARA LA ENTREGA.
Características
- Rentabilidad; Excelente diseño industrial de la carcasa en aluminio anodizado como el iPad, que no sólo es bella y de buen gusto, sino también mejora en gran medida la dureza de la superficie de la aleación de aluminio, y tiene buena resistencia al calor y fuerte resistencia al desgaste.
- Interfaz estándar USBXITM , fácil de conectar en housing USBXITM para permitir combinar varios instrumentos.
- interfaz USB 2.0, ninguna fuente de energía externa requerida, fácil de usar.
- Es conveniente para el ordenador portátil, mantenimiento línea de productos, puede utilizar fácilmente en los negocios.
- Dimensiones (mm): 205 (L) x120 (W) x35 (H), puede transportar fácilmente.
- Alto rendimiento, 250MS/s de muestreo en tiempo real, 200 MHz de ancho de banda,
- Sistema operativo: Windows 7, Windows 8, Windows 10, Windows NT, Windows 2000, Windows XP, VISTA.
- 23 funciones de medición,PASS/FAIL Check, adecuadas para la aplicación técnica.
- Promedio de onda, persistencia, intensidad, inversión, suma, resta, multiplicación, división, trama XY.
- Permite guardar la forma de onda en: archivo de texto, JPG / BMP archivo de gráficos, archivos de MS Excel / word.
- FFT
- En un equipo se puede conectar muchos DSO y extender la cantidad de canales fácilmente.
- incluye librerias Labview VB VC para realizar software a medida.
Especificación de hardware
|
Model |
Hantek6212BE |
|||||
|
Channel |
2 Channels |
|||||
|
Bandwidth |
200MHz |
|||||
|
Input Impedance |
1MΩ 25pF |
|||||
|
Max. Sample rate |
250MS/s |
|||||
|
Coupling |
DC |
|||||
|
Vertical resolution |
8Bit |
|||||
|
Gain range |
20mV-5V, 8Steps |
|||||
|
DC accuracy |
±3% |
|||||
|
Timebase range |
1ns-9000s, 39 Steps |
|||||
|
Vertical adjustable |
Yes |
|||||
|
Input protection |
Diode clamping |
|||||
|
X-Y |
Yes |
|||||
|
borrar |
borrar | |||||
|
Trigger Mode |
Auto, Normal and Single |
|||||
|
Trigger Slope |
+/- |
|||||
|
Trigger level adjustable |
Yes |
|||||
|
Trigger Type |
Rising edge, falling edge |
|||||
|
Trigger Source |
CH1, CH2 |
|||||
|
Pre/Post trigger |
0-100% |
|
||||
|
borrar |
borrar |
|||||
|
Sampling selection |
Yes |
|||||
|
Waveform Display |
port/line, waveform average, persistence, intensity |
|||||
|
Network |
Open/Close |
|||||
|
Vertical mode |
CH1, CH2, Dual, ADD |
|||||
|
Cursor measurement |
Yes |
|||||
|
Math |
FFT, addition, subtraction, multiplication, division. |
|||||
|
Cursor |
Frequency, Voltage |
|||||
|
Accessories |
S/W CD, probes, manual, USB cord |
|||||
Software
Sistema operativo: Windows 7, Windows 8, Windows 10, Windows NT, Windows 2000, Windows XP, VISTA

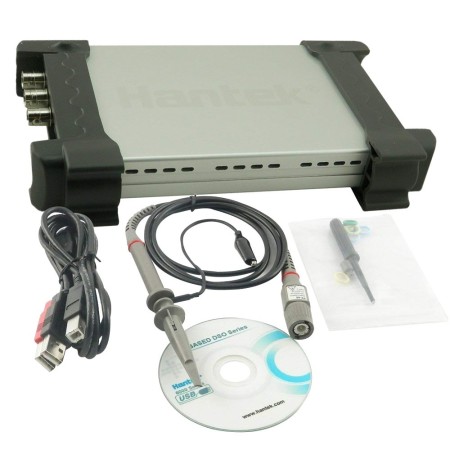

La compra incluye
- Osciloscopio hanket 6212BE
- 1 Punta osciloscopio PP-80
- Cable USB
- CD Drivers
