kit VII Osciloscopio USB de diagnóstico automotriz 60MHz 4 canales
Este es el kit que te incluye la mayor cantidad de accesorios para que puedas sacar todo el provecho a tu compra del osciloscopio DSO3064.
CONSULTE STOCK ANTES DE OFERTAR; SI BIEN LA ROTACIÓN DE ESTE PRODUCTO ES CONTINUA; PUEDE QUE TENGA QUE ESPERAR 15 DÍAS PARA LA ENTREGA.
Especificaciones
Diagnóstico del vehículo:
-
Primer diagnostico(Diagnosis del escape de arranque)
-
Acción de la ignición(Corriente/Voltaje)
-
Sensores(Corriente de aire, árbol de Levas, Cigueñal)
-
Diagnostico del BUS(Datos del CAN)
-
Performance(Petrol/Diesel)
-
Arranque y carga(Circuitos de recarga Corriente/Voltaje)
Osciloscopio:
4 canales y trigger EXT, 60 MHz de ancho de banda. 200MS / s de velocidad de muestreo en tiempo real, 10k - 16M profundidad de memoria por canal. Contador de frecuencia, análisis de espectro FFT. 8--36V Amplio rango de tensión de entrada, adecuado para la prueba de alimentación del vehículo, tiene Más de 20 tipos de medición automática y función de chequeo Pass/Fail, el cual es adecuado para aplicaciones de ingeniería.
Excelente diseño industrial, interfaz similar al banco de osciloscopio, fácil de usar.
Software compatible : Windows NT, Windows 2000, Windows XP, Vista, Win7, Win8, Win10.
Suministro código DEMO y librerías (VC, VB, LabVIEW) con soporte técnico.
Diseñado para probar la señal general y aplicaciones de automotores. El DSO-3064 tiene un tamaño pequeño y bajo consumo de energía y alta fiabilidad.
- 4 canales y trigger EXT
- Velocidad de muestreo 200MS/s
- 10k-16M de profundidad de memoria por canal.
- Ancho de banda de 60MHz.
- 50 GS / S de muestreo en tiempo equivalente (ETS)
- Contador de frecuencia, análisis de espectro FFT.
- amplio rango de voltaje de entrada 8-36V , adecuada para la prueba de potencia del vehículo.
- Interfaz USB 2.0 plug and play, LAN y WiFi opcional.
- Más de 20 tipos de funciones de medición automática, chequeo PASS/FAIL , es adecuado para aplicaciones de ingeniería.
- Excelente diseño industrial, interfaz similar a osciloscopio de banco.
- Soporte de software: Windows NT, Windows 2000, Windows XP, Vista, Windows 7, Windows 10
- Se suministra con el código DEMO y librerías (VC, VB, LabVIEW) y soporte técnico.

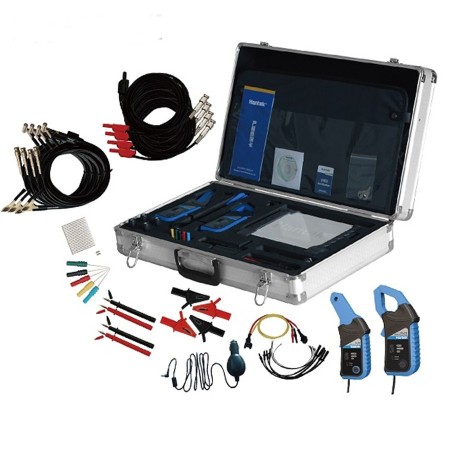

La compra incluye:
- Maleta de plastico duro
- 1 Oscilosciopio DSO3064
- 4 Cables de testeo HT30A
- 4 Sondas de arranque de alta presion HT25
- 4 Atenuadores de 20:1 HT201
- 4 Pinzas cocodrilo HT18A
- 4 Sondas de multimetro HT19
- 1 Set de sondas tipo aguja HT307
- 4 Cable de extensión con bobina sobre enchufe HT308
- 1 CC-65, AC/DC Pinza amperometrica CC-65A
- 1 CC-650,AC/DC Pinza amperometrica CC-650A
|
Modelo DSO3064 |
|
| Sistema vertical | |
| Canales Analogicos | 4 |
| Ancho de Banda | 60MHz(-3dB) |
| Tiempo de subida | 5.8ns |
| Impedancia de entrada | Resistencia: 1MΩ ; Capacitancia: 25 pF |
| Sensitividad de entrada | 10mV/div to 5V/div |
| Entradas | AC/DC/GND |
| Resolucion Vertical | 8 bits |
| Profundidad de memoria | 10K-16M/CH |
| Maxima de entrada | 400V (DC+AC Peak) |
| Sistema Horizontal | |
| Frecuencia de muestreo en tiempo real | 200MS/s |
| Rango base de tiempo | 5ns/div to 1000s/div(Secuencias 1-2-5) |
| Precision base de tiempo | ±50ppm |
| Sistema de gatillo | |
| Fuentes | CH1, CH2,CH3,CH4,EXT |
| Modos | Edge,Pulse,Viedo,Alternative |
| Medicion de voltaje | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursores de medida | Horizontal ,Vertical, Track, Auto Measure Modes |
| Procesado de ondas | +,- , x,÷, FFT, Invert |
| Rangos de voltajes | 10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 |
| Rangos de corriente | CC65(20A),CC65(60A),CC650,CC1100 |
| FFT | Rectangular,Hanning,Hamming,Blackman Window |
| Operaciones matematicas | Adition,subtraction,multiplication,division |
| Gennral Feature | |
| Interface | USB 2.0(Lan Optional) |
| Power Source | 8--36V Wide range of input voltage |
| Volume | 490 x 165 x 410 (mm) |
| Weight | 8 Kg |
| Packing Case | Aluminum case |
| Auto Test Cable (HT30A) | 4 |
| Auto High-Pressure Ignition Probe (HT25) | 4 |
| 20:1 Attenuator (HT201) | 4 |
| Large Dolphin/Gator Clip (HT18A) | 4 |
| Multimeter Probe (HT19) | 4 |
| Acupuncture Probe Set (HT307) | 1 |
| Dolphin/Gator Clip Cable (HT324) | 2 |
| Break Out Leads (HT301) | 1 |
| Coil-on-Plug Extension Cord (with earth cord) (HT308) | 4 |
| Auto Power Adapter (HT310) | 1 |
| CC65 Current Clamp | 1 |
| CC650 Current Clamp | 1 |
