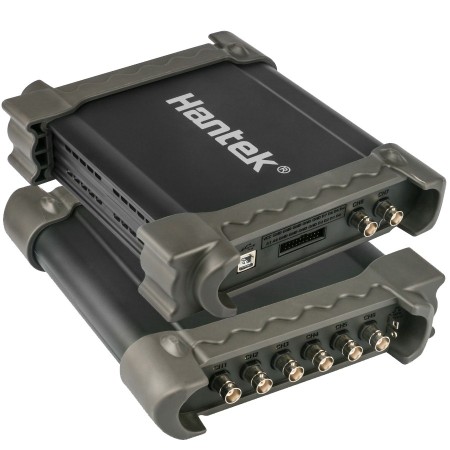

Osciloscopio USB de 8 canales
Osciloscopio de 8 canales de bajo costo y alta eficiencia para inspección de vehículos: 2.4MSa/s frecuencia de muestreo en tiempo real, 12bit de resolución vertical, DAQ card function; 8 canales programables para señales analógicas de cigüeñal, árbol de levas, etc.
Características del Osciloscopio
- 8 canales de prueba, 12 bits de resolución vertical
- Con generador programable de 8 canales
- (genera secuencias programables de señal cuadrada)
- Trabaja en: Windows NT, Windows 2000, Windows XP, VISTA, Windows 7, Windows 10
- Velocidad de adquisición 2.4 millones de muestras por segundo en tiempo real
- Prueba de voltaje: 10mv/ divi a 5 V/ div
- Visualización máx.: +/- 15V
- Con atenuador 20: 1 (No incluido) +/- 300V
PRUEBAS EN USO AUTOMOTRIZ
-
Ignición primaria y secundaria, válvula de vacío, ajuste de válvulas, prueba de ignición al arranque, prueba de aceleración
-
Sensor MAF, Sensor MAP, Sensor de cigüeñal, sensor lambda, sensor de acelerador
-
LINEAS CAN: Prueba de datos, prueba de señal, prueba de integridad, prueba de largo tiempo LH, prueba de adquisición
-
CIRCUITOS DE ARRANQUE Y ENCENDIDO
-
PRUEBAS EN SEÑALES ANÁLOGAS
-
20 MODOS DE PRUEBA DE FÁCIL USO
Especificaciones
| Model | Hantek1008 | ||
| Oscilloscope Mode | |||
| Analog Channel | 8 | ||
| Input Impedance | Resistance: 1MΩ | ||
| Input Sensitivity | 10mV/div to 5V/div | ||
| Input Coupling | DC | ||
| Resolution | 12 bits | ||
| Horizontal System | |||
| Memory Depth | 4K | ||
| Max. Imput | 400V (DC+AC Peak) | ||
| Real-Time Sampling Rate | 2.4MSA/s | ||
| Time BaseRange | 1ns/div to 20000s/div(1-2-5sequences) | ||
| Ti Base Precisión | ±50ppm | ||
| Trigger System | |||
| Time Base Range | ±1ns/div to 20000s/div(1-2-5sequences) | ||
| Tune Base Precision | ±50ppm | ||
| Trigger Source | CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8 | ||
| Trigger Mode | Edge | ||
| X-Y Mode | |||
| X-Axis input | CH1 | ||
| Y-Axis input | CH2 | ||
| Cursors and Measurement | |||
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vcrms, Preshoot, Overshoot | ||
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | ||
| Cursors Measurement | Horizontal, Vertical, TRack, Auto Measure Modes | ||
| Waveform Signal Process | + , - , x , ÷ , FFT , Invert | ||
| Voltage Range | 10mV to 5V/div @ x 1 probe 100mV to 50V/div @ x 10 probe 10V to 5000V/div @ x 1000 probe 100V to 50000V/div @ x 10000 probe 200mV to 100V/div @ 20:1 |
||
| Current Range | 100mA to50.0A/div @ CC65(20A) 1000mA to500.0A/div @ CC65(65A) 1A to100.0A/div @ CC650(60A) 1A to200.0A/div @CC1100(100A) 10A to2000.0A/div @CC1100(1100A) |
||
| FFT | Rectangular, Hanning, Hamming, Blackman Window | ||
| Math | Addition, subtraction, multiplication, division | ||
| Programmable Generator | |||
| Channel | 8 | ||
| Output Level | LVTTL | ||
| Frequency Range | 0-250kHz | ||
| Interface | USB 2.0(Full Speed) | ||
| Power | No need extra power supply | ||
| Size & Weight | 185x150x27 (mm); 0.24kg | ||
La compra incluye:
-
-
Un Osciloscopio Hantek 1008C
-
Un Cable USB
-
8 sondas tipo caiman con conector bnc
-
1 sonda capacitiva para la ignición (secundario de la bobina)
-
Cd de instalación
-
Incluye manual en Inglés
-
