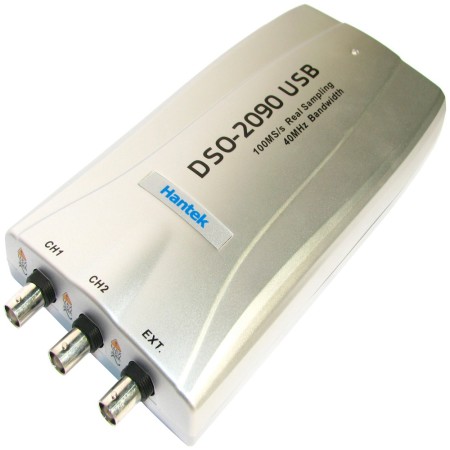

Osciloscopio USB 40Mhz 2 canales
Osciloscopio digital USB de dos canales. No necesita alimentación externa, se alimenta directamente por USB lo que permite ser utilizado para trabajo de campo.
CONSULTE STOCK ANTES DE OFERTAR; SI BIEN LA ROTACIÓN DE ESTE PRODUCTO ES CONTINUA; PUEDE QUE TENGA QUE ESPERAR 15 DÍAS PARA LA ENTREGA.
Convertí tu PC en un osciloscopio profesional con una completa interfaz gráfica. Simple, pequeño, portable. Utilizable con cualquier PC o notebook
Especificaciones generales:
- Alta performance, 100MS/s muestreo en tiempo real, 40MHz de Ancho de Banda
- interface USB2.0, no necesita fuente externa, fácil de usar
- Soporta FFT
- Mas de 20 funciones de medición, PASS/FAIL Check, es apto para aplicaciones técnicas.
- Onda promedio, persistencia, intensidad, invercion, suma, resta, multiplicación, división, gráfico X-Y
- Guarda la forma de onda en los siguientes formatos: text file, jpg/bmp graphic file, MS excel/word file
- Sistemas operativos: Windows98/Me/NT/2000/XP/Vista/Seven
| Canales | 2 Canales |
| Ancho de banda | 40MHz |
| Impedancia | 1MΩ 25pF |
| Frecuencia de muestreo | 100MS/s |
| Tipo de conexion | AC/DC/GND |
| Resolucion vertical | 8Bit |
| Rango de ganancia | 10mV-5V, 9Steps |
| Precision DC | ±3% |
| Rango de tiempo base | 4ns-1h, 38 Steps |
| Vertical ajustable | Si |
| Proteccion de entrada | Diode clamping |
| X-Y | Si |
| Autoconfig | Si (30Hz to 40MHz) |
| Entrada EXT. | Si |
| Modos de gatillo | Auto, Normal y Simple |
| Inclinacion de gatillo | +/- |
| Nivel de gatillo ajustable | si |
| Tipo de gatillo | Rising edge, falling edge |
| Fuentes de los gatillos | CH1, CH2, EXT |
| Pre/Post gatillo | 0-100% |
| Tamaño del buffer | 10K-32KB/Canal |
| Deteccion de muestra | Si |
| Display de forma de onda | port/line, promedio de curva, persistencia, intensidad |
| Network | Abierto / Cerrado |
| Modo Vertical | CH1, CH2, Dual, ADD |
| Medicion de cursor | Yes |
| Math | FFT, Suma, Resta, Multiplicacion, Division. |
| Cursor | Frecuencia, Voltaje |
| Muestras de datos | 10K-32K/Channel |
La compra incluye:
- 1 * DSO2090 Osciloscopio
- 2 * Puntas 60MHz/6MHz
- 1 * Cable USB
- 1 * CD Software
- 1 * Manual de usuario (ingles)
Todo en caja cerrada
