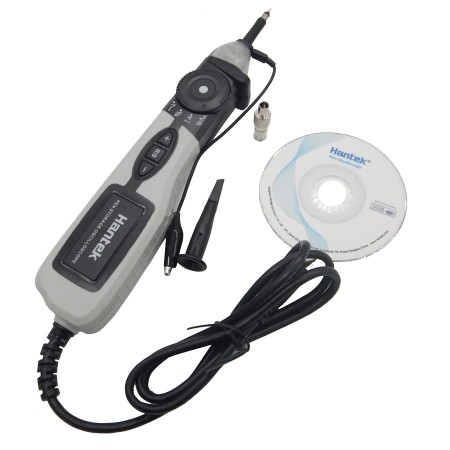

Osciloscopio Usb de Mano

Osciloscopio de mano con interfaz USB, dispositivo Plug and Play, función de medición automática.

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	8%	$ 125.755,66
30	10%	$ 471.583,71
50	12%	$ 943.167,42
100	14%	$ 2.200.723,98

$ 147.762,90 Impuestos no incluidos

147762.9 Impuestos no incluidos

$ 157.194,57 -6%

Sin stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

Descripción:

De fácil operación, cambia el voltaje/tiempo de medición con una mano girando el selector, luz led incorporada, proporcionando mejor iluminación para el usuario en ambientes oscuros, ligero y portátil, función DVM; visualiza los resultados de medición de voltaje en tiempo real, 20 MHz de ancho de banda.

Diferentes lenguajes disponibles, 20 tipos de funcionamiento automático de medición, función Paso/Fallo, sistema operativo: Windows NT, Windows 200/ Xp, Windows 7 / 8, permite conectarse directamente al portátil.

Especificaciones:

Vertical
Channel	1
Bandwidth	20MHz
Input Impedence	1MΩ
Input Sensitivity	20mV/div to 50V/div
Input Coupling	DC/AC/GND
Vertical Accuracy	±3%
Resolution	8 bits
Memory Depth	Maximum 1M/CH
Max. Measurement Voltage	±50V（Without any attenuation）
Input Protection	100V (DC+AC Peak)
Horizontal
Max. Sample Rate	96MSa/s
Time Base Range	1ns/div to 5000s/div（Step by 1-2-5）
Trigger
Trigger Source	CH1
Trigger Type	Edge Trigger
Cursor and Measurement
Voltage Measurement	Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Math	+,- , x,÷, FFT
Voltage Range	20mV to 20V/div @ x 1 probe
Others
FFT	Rectangular, Hanning, Hamming, Blackman
Auto Set	Yes
Interface	USB 2.0
Power Supply	USB Power Supply
Volume	200x120x 35(mm)
Weight	1Kg（After Packing）

La compra incluye:

Osciloscopio Usb de Mano
CD con drivers
Adaptador Bnc Para 3.5mm
Ganchos de resorte para sonda
Empaquetado en caja
