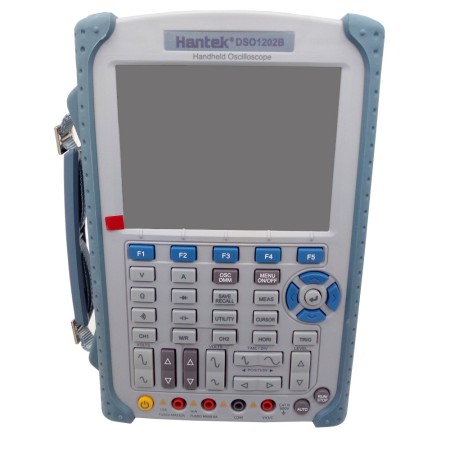

Osciloscopio portatil 200Mhz 2 canales HANTEK DSO1202B
Osciloscopio portátil de dos canales con funciones de multímetro incorporadas. Ancho de banda 200 MHz, frecuencia de muestreo en tiempo real 1 GSa/s y memoria de 1 M. Alimentación con fuente externa o bateria incluida de Li-ion
Osciloscopios Hantek de la serie DSO1000 garantizan exactitud máxima de mediciones y su visualización.
CONSULTE STOCK ANTES DE OFERTAR; SI BIEN LA ROTACIÓN DE ESTE PRODUCTO ES CONTINUA; PUEDE QUE TENGA QUE ESPERAR 15 DÍAS PARA LA ENTREGA.
Osciloscopio digital Hantek DSO1202B es idóneo para pruebas industriales, mantenimiento de equipos en función, investigaciones y todo tipo de trabajos, donde se necesita efectuar pruebas analógicas/digitales y detectar fallas.
Hantek DSO1202B es un osciloscopio de dos canales con funciones de multímetro incorporadas. En el modo de multímetro este aparato sirve para medir voltaje, corriente, resistencia, capacitancia, chequear los diodos y circuitos electrónicos, ideal para trabajo de campo.
Especificaciones
- Ancho de banda - 200 MHz
- Pantalla LCD a color de 5,6 pulgadas con resolución 640x480
- Ajuste de diapasón, barrido, modo de disparo y optimización de posición con un solo toque
- 23 mediciones automáticas
- Funciones matemáticas: suma, resta, multiplicación y división
- Función FFT incorporada
- Funciones de multímetro de precisión (6000 cuentas):
- Voltaje
- Corriente
- Resistencia
- Capacitancia
- Chequeo de circuitos
- Chequeo de diodos
- Mediciones automáticas mediante el cursor
- Grabación de hasta 1000 oscilogramas
- Grabación/reproducción de señales desde canal 1 y canal 2
- Visualización de meandro (2 V, 1 kHz)
- Interface USB versión 2.0
Especificaciones Técnicas
| Model | DSO1202B | ||
| Bandwidth | 200MHz | ||
| Channel | 2 | ||
| Real-Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| Record Length | 1M | ||
| Rish time | ≤1.7ns | ||
| Timebase Accuracy | ±50ppm | ||
| Time Base Range | 2ns/div-40s/div | ||
| Input Impandance | 1MΩ | ||
| VOLTS/DIV Range | 2mV/div～5V/div | ||
| A/D Converter | 8bit | ||
| Position Range | ±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div) |
||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2 | ||
| Math | +, -, x, ÷, FFT, Invert | ||
| Cursor Measurement | Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT); |
||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF | ||
| DMM Max. Resolution | 6,000 Counts | ||
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC: 600V, DC: 800V | ||
| Max. Input Current | AC:10A , DC: 10A | ||
| Max. Input Impandance | 10MΩ | ||
| Display | 5.6"TFT 16K Color Display, 640*480 dots | ||
| Size | 245mm x 163mm x 52mm | ||
| Weight | 1.3KG(Without Package) | ||
| Standard Probe | PP200x2 | ||
La compra incluye
