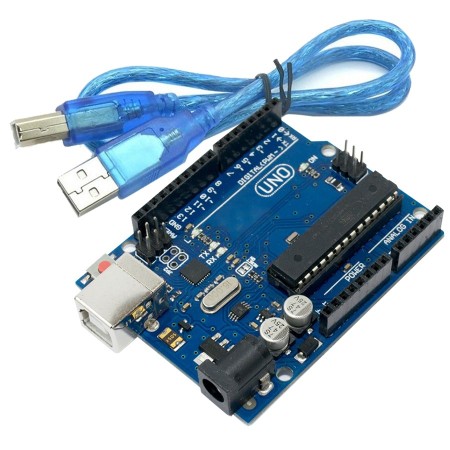

Arduino Uno R3 Atmega328 + Atmega16u Atmel
Arduino Uno es la tarjeta de desarrollo más popular de la familia Arduino, basado en el microcontrolador ATmega328, ideal para iniciarse en el mundo de los microcontroladores.
Tiene 20 pines digitales de entrada/salida (de las cuales 6 se puede utilizar como salidas PWM), 6 entradas analógicas, un cristal de cuarzo de 16 MHz, una conexión USB, un conector de alimentación, una cabecera ICSP, y un botón de reinicio. Basta con conectarlo a una computadora con un cable USB o una fuente de alimentación para empezar.
Características
Arduino Uno R3 es una tarjeta de desarrollo que utiliza el microcontrolador ATmega328P (Atmel), es la version más recomendada para iniciarse en esta plataforma. Posee 14 entradas/salidas digitales (6 pueden usarse como PWM), 6 entradas analógicas, un resonador cerámico de 16 MHz, conexión USB, conector de alimentación, conector ICSP y un botón de Reset. La tarjeta contiene todo lo necesario para el funcionamiento del microcontrolador; basta conectarlo al puerto USB o alimentarlo con una fuente de voltaje continuo o una batería para empezar a usarlo.
ESPECIFICACIONES TÉCNICAS
- Microcontrolador: ATmega328P
- Chip USB: ATmega16U2
- Voltaje de Operación: 5V
- Voltaje de alimentación: 6-20V (7-12V recomendado)
- Pines digitales I/O: 14 (6 salidas PWM)
- Entradas analógicas: 6
- Corriente máxima entrada/salida: 40mA
- Memoria flash: 32K
- Memoria SRAM: 2K
- Memoria EEPROM: 1K
- Velocidad de reloj: 16Mhz
TUTORIAL
La compra incluye
- Arduino UNO R3
- Cable USB
- Anchura
- 5.5cm
- Profundidad
- 8cm
- Peso
- 30g
- Chipset
- Atmega328p
- Voltaje de operación
- 5V
- Altura
- 1cm
