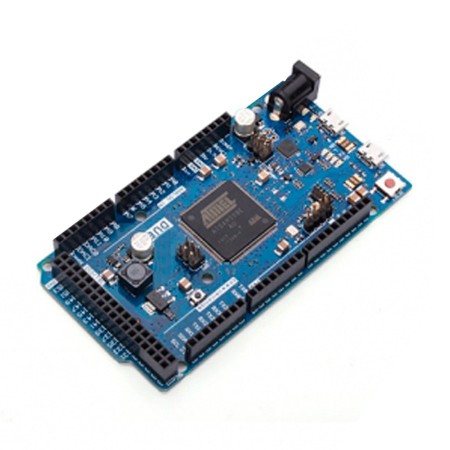

Placa Basado en Arduino DUE R3 Atsam3x8e Arm Cortex M2 512
Arduino DUE es una tarjeta de desarrollo mucho mas potente que el Arduino Mega, utiliza el microcontrolador Atmel SAM3X8E ARM Cortex-M3 CPU. Posee 54 entradas/salidas digitales (12 pueden usarse como PWM), 12 entradas analógicas, 4 UARTs, 2 DAC
Características
Arduino es la plataforma de desarrollo de proyectos en electrónica y robótica más utilizada a nivel mundial, esto debido a su facilidad de aprendizaje y uso, abundante documentación y múltiples aplicaciones. Arduino Due R3 es la version más potente de toda la familia Arduino. Su microcontrolador de 32 bits le permite ser usado en aplicaciones con complejos procesamientos de señales o datos, interfaces gráficas y redes de comunicaciones.
Arduino Due R3 es una tarjeta de desarrollo que utiliza el microcontrolador de 32 bits Atmel SAM3X8E ARM Cortex-M3 CPU. Posee 54 entradas/salidas digitales (12 pueden usarse como PWM), 12 entradas analógicas, 4 UARTs, 2 DAC, USB OTG, clock de 84 MHz, conexión USB, conector de alimentación, conector ICSP y un botón de Reset. La tarjeta contiene todo lo necesario para el funcionamiento del microcontrolador; basta conectarlo al puerto USB o alimentarlo con una fuente de voltaje continuo o una batería para empezar a usarlo.
Advertencia: Arduino Due R3 trabaja a 3.3V
Arduino Due es compatible con la mayoría de Shields diseñadas para Arduino Mega que trabajen a 3.3V.
ESPECIFICACIONES TÉCNICAS
- Microcontrolador: Atmel SAM3X8E ARM Cortex-M3 CPU
- Voltaje de Operación: 3.3V
- Voltaje de alimentación: 6-20V (7-12V recomendado)
- Pines digitales I/O: 54 (12 salidas PWM)
- Entradas analógicas(ADC): 12
- Salidas analógicas(DAC): 2
- Corriente máxima entrada/salida(total): 130mA
- Memoria FLASH: 512 KB
- Memoria SRAM: 94 KB
- Memoria EEPROM: No disponible
- Velocidad de reloj: 84Mhz
- 4 UARTs
- Controlador DMA
TUTORIAL
LA COMPRA INCLUYE
- 1 Arduino DUE R3 con chipset ATSAM3X8E
- Anchura
- 5,3cm
- Microcontrolador
- AT91SAM3X8E ARM CORTEX M332 BIT 84 MHZ
- Memoria flash
- 512 KB
- Memoria RAM
- 96 KB
- Tensión de alimentación recomendada
- 7 a 12 V, MAXIMO 20 V
- Altura
- 10cm
