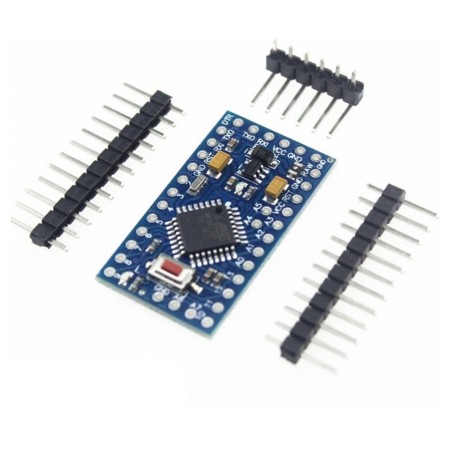

Placa Basada en Arduino Pro Mini 3.3v Atmega 328p 8mhz
El ARDUINO PRO MINI es una placa basada en el ATMEGA328P esta diseñada para proyectos donde se requiera la potencia de un ARDUINO UNO pero en un tamaño mas reducido, gracias a que esta plaqueta no tiene pines soldados ni tampoco conectores lo hace perfecto.
ESPECIFICACIONES:
El ARDUINO PRO MINI es una placa basada en el ATMEGA328P. Tiene 14 pines digitales de entrada/salida (de las cuales 6 se puede utilizar como salidas PWM),
6 entradas analógicas, un cristal oscilador de 8 MHz, un botón de RESET y tiene 6 headers donde se puede
conectar a un cable FTDI para proporcionar alimentación y comunicación USB a la placa.
Para programar debe utilizarse un adaptador USB-Serial o un adaptador Serial USB/RS232 a TTL.
Se requiere reiniciar el puerto antes de subir el programa ( basta con desconectar y conectar el USB )
Recomendamos utilizar MODULO CP2102
CP2102 PRO MINI 3.3V
DTR DTR
RXD TXO
TXID RXI
3.3V VCC
GND GND
Incluye un regulador de voltaje de 3.3V en la placa conectando el positivo ( + ) en el pin RAW del Arduino PROMINI y el negativo ( - ) con GND.
El Arduino Mini fue diseñado por SparkFun Electronics (USA).
ADVERTENCIA: NO alimentar el Arduino Mini con más de 9 voltios ni tampoco alimentarlo al revés.
ESPECIFICACIONES TÉCNICAS
- Microcontrolador: ATmega328P
- Voltaje de Operación: 3.3V DC
- Voltaje de alimentación: 3.3V - 9V DC
- Pines I/O Digitales: 14 (6 PWM)
- Pines Analógicos: 8
- Corriente DC por Pin I/O: 40 mA (máx.)
- Memoria FLASH: 32KB (2KB usados por el Bootloader)
- Memoria SRAM: 2KB
- Memoria EEPROM: 1KB
- Frecuencia de Reloj: 8 MHz
LINKS
La compra incluye
- Arduino PROMINI 3.3V
- Tiras de Pines
- Anchura
- 2cm
- Profundidad
- 3.5cm
- Procesador
- ATmega328P
- Velocidad del clock
- 8Mhz
- Voltaje de operación
- 3.3v
- Entradas analógicas
- 6
- Capacidad de corriente por pin
- 6
- Entradas/Salidas digitales
- 20 (de los cuales 7 proveen de salida PWM)
- Alimentación
- 3.3V - 9V
