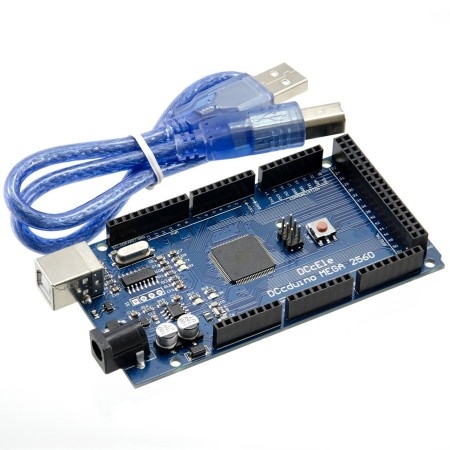

Arduino Mega 2560 CH340
El Arduino Mega 2560 es una placa electrónica basada en el microprocesador Atmega2560 posee 54 pines configurables como entradas/salidas digitales (de los cuales 14 se puede utilizar como salidas PWM), 16 entradas analógicas, 4 UARTs (puerto serial), un oscilador de cristal de 16 MHz, una conexión USB para descargar el software de operación (No requiere ningún programador externo).
El Arduino Mega 2560 es una placa electrónica basada en el microprocesador Atmega2560 posee 54 pines configurables como entradas/salidas digitales (de los cuales 14 se puede utilizar como salidas PWM), 16 entradas analógicas, 4 UARTs (puerto serial), un oscilador de cristal de 16 MHz, una conexión USB para descargar el software de operación (No requiere ningún programador externo), un conector de alimentación, un conector ICSP , y un botón de reset. Esta placa contiene todo lo necesario para comenzar a programar en forma inmediata con el entorno de desarrollo arduino. Es compatible con la mayoría de las placas shield diseñadas para el arduino Duemilanove o Diecimila
Este articulo es ARDUINO COMPATIBLE.
Chipset de comunicación usb CH340.
Especificaciones
- Procesador: ATmega2560
- Voltaje de operación: 7V-12V
- Entradas/Salidas Digitales: 54 (14 programables como salidas PWM)
- Entradas Analógicas: 16
- Capacidad de corriente por pin: 40mA
- Memoria Flash: 256kB (4kB son empleados por el bootloader arduino)
- Memoria RAM: 8kB
- Memoria EEPROM: 4kB
- Velocidad de Clock: 16Mhz
La compra incluye
- 1 Arduino Mega 2560
