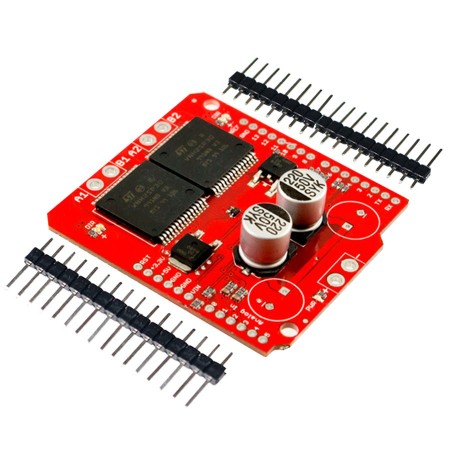

Monster Motor Shield VNH2SP30

El moto monster shield es capaz de controlar 2 motores de corriente continua o 1 motor paso a paso de hasta 30A. Usa 2 puentes-H VNH2SP30 de ST Microelectronics.

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	13%	$ 29.176,47
30	15%	$ 100.995,48
50	17%	$ 190.769,24
100	19%	$ 426.425,36

$ 19.974,66 Impuestos no incluidos

19974.66 Impuestos no incluidos

$ 22.443,44 -11%

Sin stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

Monster Motor Shield VNH2SP30

Descripción:

Esta es una versión mejorada del Motor Driver Shield Ardumoto. Para este monster shield se ha reemplazado el puente L298 H con un par de drivers de motor full-bridge VNH2SP30. También se ha mejorado el circuito de soporte por lo cual esta placa es capaz de manejar un par de motores de alta-corriente!. El VIN y motor out están preparados para los terminales screw de 5mm (no incluidos), haciendo fácil conectar cables de gran grosor.

Cuando se utiliza en aplicaciones de alta corriente, mayores a 14A, es necesario mejorar la resistencia térmica con un disipador de calor o ventilador y soldar los cables directamente a la placa en lugar de utilizar un terminal de tornillo. Sin embargo, cuando se utiliza este shield con corrientes de hasta 6A los chips apenas se notan tibios.

ESPECIFICACIONES:

Tension máxima: 16V
Corriente máxima: 30A
Corriente recomendada sin disipador: 14A
Sensado de corriente a través de un pin analógico del Arduino
Resistencia de conducción del MOSFET: 19 mOhm
Frecuencia PWM máxima: 20 kHz
Apagado por temperatura
Apagado por baja y alta tensión
Protección contra conducción cruzada

La compra incluye:

1 Motor Monster Shield Vnh2sp30
1 pack de pines
