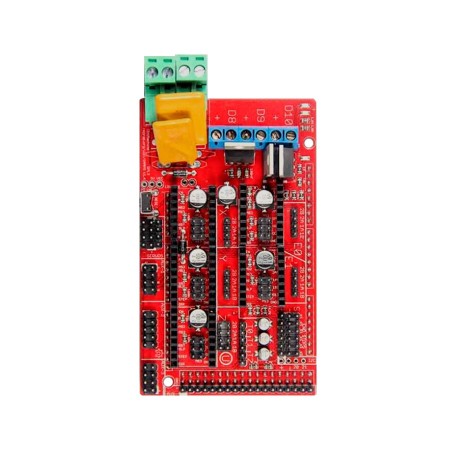

Arduino Ramps V1.4 Shield Reprap

RepRap Pololu Arduino Mega Shield (RAMPS) es una interfaz para Arduino Mega ideal para añadir la etapa de potencia y los drivers de motor paso a paso necesarios para los tres ejes de una impresora 3D y el/los extruders.

Descuentos por cantidad

Cantidad	Descuento unitario	Usted ahorra
10	15%	$ 9.773,76
30	17%	$ 33.230,78
50	19%	$ 61.900,48
100	21%	$ 136.832,64

$ 5.668,78 Impuestos no incluidos

5668.78 Impuestos no incluidos

$ 6.515,84 -13%

En stock

FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad

Política de entrega

Política de devolución

Características:

RAMPS es la abreviatura de “RepRap Arduino Mega Pololu Shield” es el Shield más utilizado en el mundo para construir Impresoras 3D DIY. RAMPS ha sido diseñado para integrar toda la electrónica necesaria para una impresora 3D RepRap en un pequeño tamaño y a un bajo costo. RAMPS es un Shield para Arduino Mega, aprovechando el poder del Mega y deja espacio para futuras expansiones. Su diseño modular permite insertar Drivers PaP (A4988 o DRV8825) y el control electrónico para un extrusor, por lo que es sencillo reemplazar partes, realizar mejorar y hacer expansiones, adicionalmente se pueden añadir más Shields siempre y cuando RAMPS se coloque encima de los demás Shields.

Especificaciones técnicas

Shield para Arduino Mega, Due.
Versión 1.4
3 Mosfet para controlar Heater/Ventilador
3 Circuitos para termistor
Fusible de 5A para mayor seguridad de componentes
Fusible de 11A para el HeatBed
Soporta hasta 5 Drivers A4988 o DRV8825
I2C e ISP disponibles para expansiones
Los mosfets pueden ser controlados por PWM
Conectores Header permiten conectar motores, leds, limit switchs, etc.
Led indicador de Heater ON

La compra incluye

Arduino Ramps V1.4 Shield Reprap.
En empaque antiestático.
