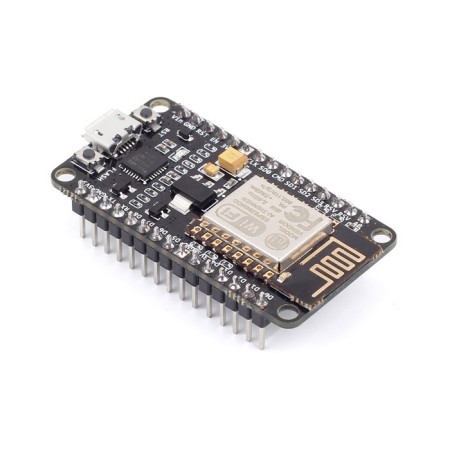

Nodemcu Wifi Esp8266 CP2102
EL Nodemcu Wifi Esp8266 es una placa de desarrollo que esta basada en el popular chip ESP8266. Con este sencillo modulo se puede realizar el prototipo de cualquier sistema para el loT (internet of things).
El NodeMCU es una tarjeta de desarrollo similar a Arduino, especialmente orientada al Internet de las cosas (Internet of things). Está basado en el SoC (System on Chip) ESP8266, un chip altamente integrado, diseñado para las necesidades de un mundo conectado. Integra un potente procesador con Arquitectura de 32 bits (más potente que el Arduino Due) y conectividad Wifi.
Para el desarrollo de aplicaciones se puede elegir entre los lenguajes Arduino y Lua. Al trabajar dentro del entorno Arduino podremos utilizar un lenguaje que ya conocemos y hacer uso de un IDE sencillo de utilizar, ademas de hacer uso de toda la información sobre proyectos y librerías disponibles en Internet, la comunidad de usuarios de Arduino es muy activa y da soporte a plataformas como el ESP8266.
NodeMCU viene con un firmware pre-instalado el cual nos permite trabajar con el lenguaje interpretado LUA, enviándole comandos mediante el puerto serial (CP2102). Las tarjetas NodeMCU y Wemos D1 mini son las plataformas mas usadas en proyectos de Internet de las cosas (IoT). No compite con Arduino, pues cubren objetivos distintos, incluso es posible programar NodeMCU desde el IDE de Arduino.
La tarjeta NodeMCU está diseñada especialmente para trabajar en protoboard. Posee un regulador de voltaje en placa que le permite alimentarse directamente del puerto USB. Los pines de entradas/salidas trabajan a 3.3V. El chip CP2102 se encarga de la comunicación USB-Serial.
ESPECIFICACIONES TÉCNICAS
- Voltaje de Alimentación (USB): 5V DC
- Voltaje de Entradas/Salidas: 3.3V DC
- SoC: ESP8266 (Módulo ESP-12)
- CPU: Tensilica Xtensa LX3 (32 bit)
- Frecuencia de Reloj: 80MHz/160MHz
- Instruction RAM: 32KB
- Data RAM: 96KB
- Memoria Flash Externa: 4MB
- Pines Digitales GPIO: 17 (pueden configurarse como PWM a 3.3V)
- Pin Analógico ADC: 1 (0-1V)
- UART: 2
- Chip USB-Serial: CP2102
- Certificación FCC
- Antena en PCB
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Stack de Protocolo TCP/IP integrado
- PLLs, reguladores, DCXO y manejo de poder integrados
- Potencia de salida de +19.5dBm en modo 802.11b
- Corriente de fuga menor a 10uA
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Consumo de potencia Standby < 1.0mW (DTIM3)
INTERFACE CORRESPONDIENTE
- SDIO 2.0, SPI, UART
- Integra RF switch, balun, 24dBm PA, DCXO y PMU
- Posee un procesador RISC, memoria en chip e interface para memoria externa
- Procesador MAC/Baseband integrado
- Interface I2S para aplicaciones de audio de alta calidad
- Reguladores de voltaje lineales "low-dropout" en chip
- Arquitectura propietaria de generación de clock "spurious free"
- Módulos WEP, TKIP, AES y WAPI integrados
LA COMPRA INCLUYE
- 1 Nodemcu Wifi Esp8266
TUTORIAL
LINKS
- Anchura
- 2.5cm
- Profundidad
- 5cm
- Altura
- 1cm
