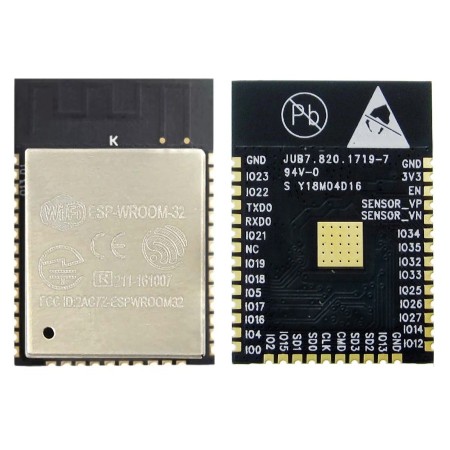

Módulo Wifi Esp8266 Esp-32S
- El ESP-WROOM-32 es un módulo microcontrolador WiFi, BT y BLE potente.
- Diseñado para una amplia variedad de aplicaciones.
- Redes de sensores de baja potencia
- Codificación de voz.
- Transmisión de música y decodificación de MP3.
- Compatible son Arduino y Raspberry
Descripción:
ESP32 es un sistema en chip (SoC) WiFi y Bluetooth con un rendimiento de RF líder en la industria, baja potencia y altas ventajas de integración.
El ESP32 integra funciones completas de transmisión / recepción de RF que incluyen interruptores de antena, balun de RF, amplificadores de potencia, amplificadores de bajo nivel de ruido, filtros, módulos de administración de energía y circuitos avanzados de auto calibración.
El circuito de auto calibración implementa un auto ajuste dinámico para eliminar defectos en los circuitos externos. ESP32 con dos CPU LX6 de 32 bits, con una velocidad de reloj de hasta 240 MHz, utilizando una arquitectura de canalización de 7 niveles. ESP32 también integra una gran cantidad de sensores analógicos y una interfaz digital.
Características:
- Certificación FCC / CE / IC / TELEC / KCC / SRRC / NCC
- Frecuencia ajustable de 80MHz a 240MHz
- Tarjeta SD, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, GPIO, sensor táctil capacitivo, ADC, DAC, preamplificador LNA e interfaces IR
- Antena de cobre integrada en la placa (Antena invertida en serpentina (MIFA))
- Pila TCP / IP integrada
- 38 pines almenados configuración de 2 mm de paso
- Protocolos compatibles: 802.11 1 b / g / n / e / i
- Velocidad de transmisión en serie / UART: 115200 bps
- Voltaje de entrada: 3.3V
- Voltaje máximo de E / S: 3.6 V
- Consumo de corriente de operación regular: ~ 70mA
- Drenaje actual (pico): ~ 300mA
- Corriente de fuga de apagado: <10µA
- Potencia de salida: + 19.5dBm (802.11b)
- Tamaño de la memoria flash: 4MB (32Mbit)
- Modos de seguridad WiFi: WPA / WPA2 / WPA2-Enterprise / WPS
- Dimensiones del módulo: 25.50mm x 18.00mm (1.00 "x 0.71")
La compra incluye:
- Módulo Wifi Esp8266 Esp-32S
