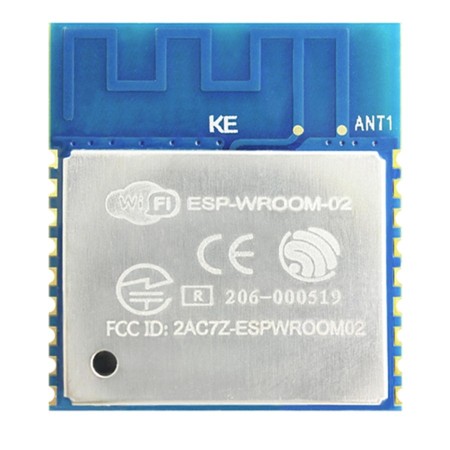

Módulo Wifi Esp8266 ESP-WROOM-02
- Módulo ESP-WROOM-02 es un módulo WiFi 802.11 b / g / n altamente integrado, el consumo de energía es extremadamente bajo al tiempo que proporciona una conexión inalámbrica a Internet para dispositivos integrados
- Domótica y seguridad del hogar.
- Luces inteligentes y enchufes
- Electrodomésticos
- Sensores y detectores
- Alarmas de seguridad
- Monitor y escalas
- Redes de malla
- Control inalámbrico industrial
- Electrónica
- Dispositivos con reconocimiento de ubicación WiFi
- Sistema de posicionamiento WiFi Balizas
Descripción:
Los módulos SMD ESP-WROOM-02 de Espressif Systems integran el SoC Wi-Fi ESP8266EX, proporcionan un excelente rendimiento de RF y también integra un conector U.FL
El módulo ESP-WROOM-02 es un módulo WiFi 802.11 b / g / n altamente integrado que consume energía extremadamente baja al tiempo que proporciona una conexión inalámbrica a Internet para dispositivos integrados.
Con una forma pequeña (18 mm por 20 mm), este módulo inalámbrico se asimila fácilmente en dispositivos de recursos limitados. Estas características lo convierten en una excelente opción para que los OEM conecten sus aplicaciones IoT (Internet of Things).
Integrado con el chip ESP8266EX , el módulo ESP-WROOM-02 es un microcontrolador de baja potencia (MCU) de 32 bits que se integra con las pilas de red TCP / IP; Las interfaces ACD de 10 bits incluidas con HSPI, SDIO, UART, PWM, I2C e I2S. Los programas y el firmware pueden almacenarse en el flash SPI integrado con una capacidad de 2 MB.
El chip ESP8266EX incorporado le da al módulo ESP-WROOM-02 una activación y transmisión de velocidad de paquetes de menos de 2 ms, lo que lo convierte en una excelente solución para aplicaciones que incluyen IoT.
Características:
- CERTIFICACIONES
- Certificacion RF: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
- Certificacion Wi-Fi: Wi-Fi Alliance
- Green certification: RoHS, REACH
- TEST
- Reliablity HTOL/HTSL/uHAST/TCT/ESD
- WI-FI
- Protocolos Wi-Fi 802.11 b/g/n
- Rango de frecuencia 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M)
- HARDWARE
- Peripheral interface
- UART/HSPI/I2C/I2S/IR Remote Control
- GPIO/PWM
- Voltaje de operacion: 2.7V ~ 3.6V
- Corriente de operacion: 80 mA
- Corriente minima deribada por fuente de alimentacion: 500 mA
- Temperatura de operacion –40°C ~ 85°C
- Temperatura de almacenamiento –40°C ~ 85°C
- Dimensiones (18.00±0.10) mm x (20.00±0.10) mm x (2.80±0.10) mm
- SOFTWARE
- Modo Wi-Fi: Station/SoftAP/SoftAP + Station
- Seguridad: WPA/WPA2
- Encryption WEP/TKIP/AES
- Firmware upgrade UART Download/OTA (via network)/Download and write
- firmware via host
- Software development Supports Cloud Server Development/SDK for custom
- firmware development
- Network protocols IPv4, TCP/UDP/HTTP/FTP
La compra incluye:
- Módulo Wifi Esp8266 ESP-WROOM-02
