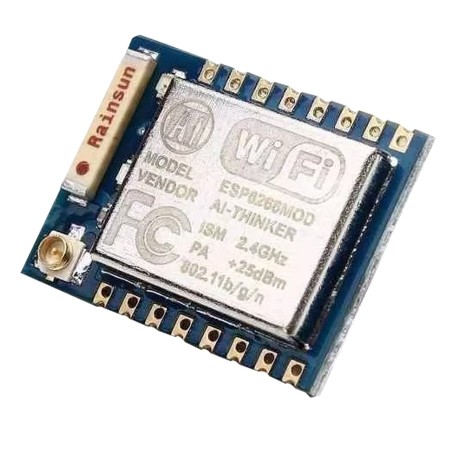

Modulo WifiI ESP8266 ESP-07 con stak TCP/IP
ESP8266 es un chip altamente integrado diseñado para las necesidades de un nuevo mundo conectado. Ofrece una solución completa y autónoma de las redes Wi-Fi, lo que le permite ya sea anfitrión de la aplicación o para descargar todas las funciones de red Wi-Fi desde otro procesador de aplicaciones.
Descripción:
ESP8266 tiene potentes capacidades de procesamiento y almacenamiento a bordo que le permiten integrarse con los sensores y dispositivos específicos de la aplicación a través de sus GPIO con un desarrollo mínimo por adelantado y la carga mínima durante el tiempo de ejecución, su alto grado de integración en el chip permite la circuitería externa mínima, y toda la solución, incluyendo el módulo de front-end, está diseñado para ocupar el mínimo área de PCB.
Características:
- 802.11 b / g / n
- Wi-Fi Direct (P2P), suave-AP
- pila de protocolos integrado TCP / IP
- TR switch integrado, balun, LNA, amplificador de potencia y la red de adaptación
- PLL integrados, reguladores, DCXO y unidades de administración de energía
- + Potencia de salida en el modo 802.11b 19.5dBm
- Apagado de la corriente de fuga <10uA
- de baja potencia integrado CPU de 32 bits podría ser utilizado como procesador de aplicaciones
- SDIO 1.1 / 2.0, SPI, UART
- STBC, 1x1 MIMO, MIMO 2x1
- A-MPDU & A-MSDU agregación y 0,4 ms intervalo de guarda
- Despertar y transmitir paquetes de <2 ms
- Consumo en espera de <1.0mW (DTIM3)
- Incorporado ADC de 10 bits
La compra incluye:
- Módulo Wifi Esp8266 Esp07
- Empacado en bolsa antiestática
- Potencia
- +19dBm en 802.11b
- Alimentación
- 3.3V
