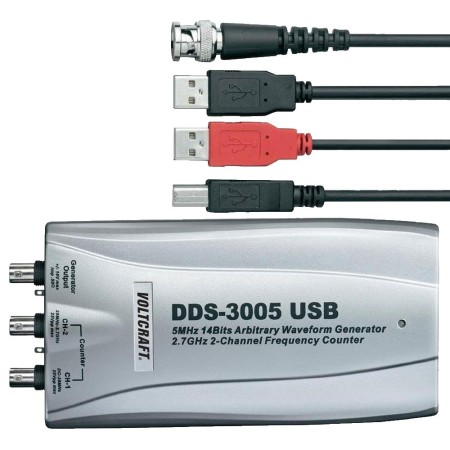

Frecuencimetro 2.7GHz + generador de funciones
Como generador tiene ondas preestablecidas y permite generar una onda cualquiera cargada mediante archivo separado por comas o simplemente dibujando la misma.
Características
- Generador de funciones hasta 5MHz
- Contador de frecuencia (frecuencimetro) hasta 2.7GHz
- Generador de patrones de 14 bits
- Excelente relación costo/performance
- Completamente controlable por PC mediante USB
- Se puede usar sin la PC. Cuando se alimenta el equipo, el mismo genera la onda seteada
- velocidad de muestreo de 14 bits de resolución vertical
- Se pueden conectar varias unidades en una misma PC obteniendo de este modo múltiples canales
- OS: Windows NT, Windows 2000, Windows XP, Windows Vista, Windows 7
- Librerías abiertas para integración de producto: Labview VB VC Delphi C++Build. Incluye ejemplos en cada lenguaje
Especificaciones técnicas
| Waveform Output Channel | |
| Frequency Range | 0.1Hz(DC)~5MHz |
| Resolution | 0.01Hz |
| DAC Clock | 0~50MHz Continuously adjustable, in step of 0.2Hz |
| Channels | 1CH waveform output |
| Memory Depth | 256KSa |
| Vertical Resolution | 14 Bits |
| Stability | <30ppm |
| Amplitude | ±10V Max. |
| Output Impedance | 50 Ω |
| Output Current | 50mA Vpeak=100mA |
| Low Pass Filter | 5MHz, 1MHz, 100KHz, 10KHz, 1KHz Programmable Control |
| Harmonic Wave distortion | -65dBc(1KHz), -53dBc(10KHz) |
| Frequency Counter Channel 1 | |
| Range | DC~25MHz |
| Input Power | 400mVpp~25Vpp |
| Coupling Mode | AC, DC Programmable |
| Accuracy | ±Time Base Error ±1 Count |
| Input Impedance | 50KΩ |
| Frequency Counter Channel 2 | |
| Range | 25MHz~2.7GHz |
| Input Power | 400mVpp~25Vpp |
| Coupling Mode | AC |
| Accuracy | ±Time Base Error ±1 Count |
| Input Impedance | 50 Ω |
| Digital Input and Output | |
| Bits | 8 Bits+ Synchronized Signal 1 Bit + External Signal 1 Bit |
| Level | 3/5V TTL/CMOS |
| Working Environment | |
| Working Temperature | 0~70 Centigrade |
| Working Humidity | 0~65% |
| Weight | 0.7Kg |
La compra incluye
- 1 DDS-3005
- 1 cable BNC a BNC
- 1 Cable USB doble de alimentación y datos
- 1 CD con software y drivers
