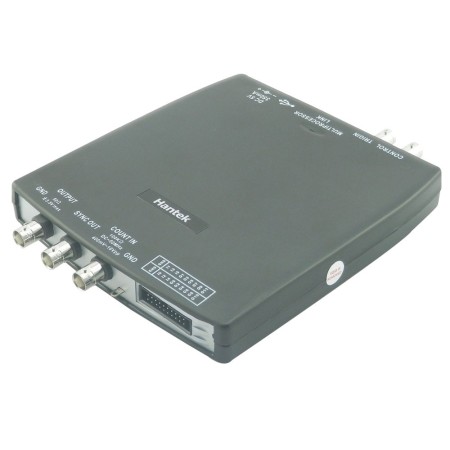

Generador de funciones arbitrarias 25MHz + frecuencimetro
Generador de funciones arbitrarias DDS3X25 utiliza la tecnología DDS, la que garantiza una señal sinusoidal estable, exacta, limpia y con el mínimo de distorsiones.
Convierte cualquier PC en un completo generador de señales.
CONSULTE STOCK ANTES DE OFERTAR; SI BIEN LA ROTACIÓN DE ESTE PRODUCTO ES CONTINUA; PUEDE QUE TENGA QUE ESPERAR 15 DÍAS PARA LA ENTREGA.
Características
- Generador de funciones arbitrarias
- Rango de frecuencia: 1 Hz a 25 MHz
- Velocidad de muestreo: 200 MSa/s
- Memoria: 4 KSa
- Resolución: 12-bits
- Formas de onda: pulso, rampa, triangulo, ruido y DC
- Señales arbitrarias: Exponenciales, rampa, negativa
- Modulaciones: AM, FM
- Barridos: lineal, logarítmico
- Contador de frecuencia: 25 MHz
- Rango de amplitud: +- 3,5V
- Interfaz USB 2.0 para conexión a PC y alimentación
Especificaciones técnicas
| Arbitrary waveform ouput | |
| Wave frequency | DC~25MHz |
| DAC clock | 2K~200MHz adjustable |
| Channels | 1CH waveform output |
| Waveform Length | 4KSa |
| Vertical Resolution | 12 bit |
| Frequency stabilization | <30ppm |
| Amplitude | ±3.5V Max. |
| Output impedance | 50 Ω |
| Output current | 50mA Ipeak=50mA |
| System Bandwidth | 25M |
| Wave distortion | -50dBc(1KHz), -40dBc(10KHz) |
| Frequency Counter | |
| Frequency area | DC~50MHz |
| Input Amplitude | 400mVpp~18Vpp |
| Coupling | DC |
| frequency precision | ±time base error ±1 count |
| input impedance | > 100KΩ |
| Pattern Generator | |
| Digit | 12 bits pattern generator and 6bit digital in |
| Type | LVCMOS |
| Working Environment | |
| temperature | 0~70 centigrade |
| humidity | 0~95% |
| Weight | 0.3Kg |
La compra incluye
- 1 DDS3x25
- 1 cable BNC a BNC
- 1 Cable USB doble de alimentación y datos
- 1 CD con software y drivers
- 1 Manual (Ingles)
