Osciloscopio automotriz HANTEK DSO6074BE-KITIV
Este es el kit que te incluye la mayor cantidad de accesorios para que puedas sacar todo el provecho a tu compra del osciloscopio DSO6074BE.
Osciloscopio automotriz HANTEK DSO6074BE-KITIV
Descripción:
Osciloscopio diseñado específicamente para su uso en el campo automotriz / electromecánica.
Es compatible con toda la gama de accesorios de Hantek. Este modelo dispone de un gran ancho de banda, lo que lo capacita para realizar cualquier tipo de medida en un vehículo.
Este kit incluye un juego completo de accesorios con varias unidades y tipos de sonda para cubrir todas las necesidades de medición del ámbito de automotriz.
Incluye una completa base de datos con más de 80 tipos de señales automotrices, tanto para motores diesel como para nafteros, aquí algunos ejemplos:
-Encendido primario / secundario
-Medidor de flujo de aire
-Árbol de levas
-Cigüeñal
-Distribuidor
-Sonda Lambda
-Posición del acelerador
-Starter y circuitos de carga
Su gran ancho de banda le permite reconstruir y examinar las señales de bus CAN y bus LIN, verificar la integridad de la señal, etc.
4 Canales aislados
Alta sensibilidad de entrada
Válido para cualquier equipo con Windows (XP, Vista, Windows 7, Windows 8, Windows 10)
Conexión y alimentación por puerto USB 2.0 (No precisa alimentación extra)
20 Tipos de medidas automáticas integradas
Potentes funciones de disparo
Grabación y reproducción de formas de onda tiempo real
Captura de señales en EXCEL, BMP o JPG
Carcasa ligera y robusta de aluminio
Forma de onda media, persistencia luminosa, control de iluminación
Dispone de modo inverso y puede sumar, restar, multiplicar, dividir, y combinar canales en modo X-Y
Analizador de espectro FFT
Librerías SDK disponibles en varios lenguajes de programación (Labview VB QT)
Especificaciones técnicas:
|
Model DSO6074BE |
|
| Channels | 4 |
| Bandwidth | 70 MHz |
| Automotive Measurement Function |
Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition; Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position; CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus; Performer: Petrol/Diesel; Starter and charging circuits |
| Real-time Sampling Rate | 1GSa/s |
| Memory Depth | 64K |
| Time Base Precision | ±50ppm |
| Time Base Range | 2ns/div-1000s/div (1-2-4 sequences) |
| Input Impedance | 1MΩ 25pF |
| Input Sensitivity | 2mV/div～10V/div |
| Vertical Resolution | 8Bit |
| Vertical Displacement Range | 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe； 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe |
| DC Gain Accuracy | ±3% |
| Bandwidth | 20MHz |
| Trigger Mode | CH1, CH2, CH3,CH4 |
| Cursors Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Volume | 175mm * 105mm * 25mm |
| Weight | 7KG |
| Accessory | 2 passive probes, 2 gator clip lines |

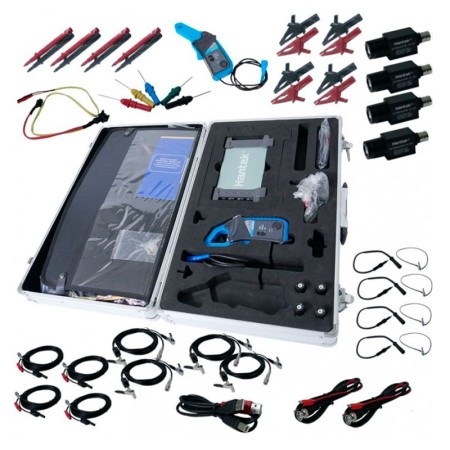

La compra incluye:
1 x Osciloscopio USB 4 Canales DSO6074BE
4 x Sonda inductiva 10000:1 para alta tensión
4 x Cable Extensor Bujía
4 x Cable alargador BNC a Banana
1 x Cable bypass con conector para sensores
2 x Set de pinzas cocodrilo grandes con conector banana
1 x Set de acupuntura con conectores banana
4 x Atenuador 20:1
2 x Cables de BNC a cocodrilo
1 x Adaptador de BNC a Bornera/Banana
1 x Pinza amperométrica 65 Amperios
1 x Pinza amperométrica 650 Amperios
1 x Cable USB
1 x Maletín de aluminio
1 x CD con drivers, software y documentación
