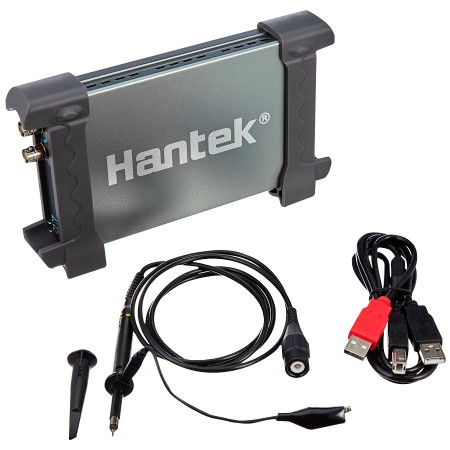

Osciloscopio Hantek 6022be
Excelente relación costo-beneficio: 20 MHz de ancho de banda, 2 canales, velocidad de muestreo 48 MSa/s, 2 sondas; Interfaz Estándar USBXI (TM) , fácil conexión en USBXI (TM).
Características
- Confiable: Excelente diseño industrial de la carcasa en aluminio anodizado como el iPad, que no sólo es bella y de buen gusto, sino también mejora en gran medida la dureza de la superficie de la aleación de aluminio, y tiene buena resistencia al calor y fuerte resistencia al desgaste.
- Interfaz estándar USB ITM : fácil de conectar, permite combinar varios instrumentos.
- Interfaz USB 2.0: no requiere fuente externa, fácil de usar.
- Perfecto para utilizar con notebooks, mantenimiento de líneas de producción, puede utilizar fácilmente en todo tipo de negocio.
- Dimensiones (mm): 205 (L) x120 (W) x35 (H), puede transportar fácilmente.
- Peso: 10 kg
- Alto rendimiento: 48MS/s de muestreo en tiempo real, 20MHz de ancho de banda,
- Sistema operativo: desde Windows XP en adelante.
- 23 funciones de medición, PASS/FAIL Check, adecuadas para la aplicación técnica.
- Promedio de forma de onda, la persistencia, intensidad, invertir, suma, resta, multiplicación, división, gráfico XY.
- Permite guardar la forma de onda en: archivo de texto, JPG / BMP archivo de gráficos, archivos de MS Excel / word.
- FFT
- En un equipo se puede conectar muchos DSO y extender la cantidad de canales fácilmente gracias al USB ITM.
- Incluye librerías Labview VB VC para realizar software a medida.
Especificación de hardware
|
Modelo |
Hantek 6022BE |
|||||
|
Canales |
2 Channels |
|||||
|
Ancho de Banda |
20MHz |
|||||
|
Impedancia de entrada |
1MΩ 25pF |
|||||
|
Sampleo Máximo |
48MS/s |
|||||
|
Coupling |
DC |
|||||
|
Resolucion Vertical |
8Bit |
|||||
|
Rango de Ganancia |
10 mV-5V, 9 Steps |
|||||
|
Precisión DC |
±3% |
|||||
|
Timebase range |
4ns-5ks |
|||||
|
Ajuste Vertical |
Yes |
|||||
|
Protección de Entrada |
Diodo | |||||
|
X-Y |
SI |
|||||
|
Entrada Externa |
NO | |||||
|
Trigger Mode |
Auto, Normal and Single |
|||||
|
Trigger Slope |
+/- |
|||||
|
Trigger level adjustable |
Yes |
|||||
|
Trigger Type |
Rising edge, falling edge |
|||||
|
Trigger Source |
CH1, CH2 |
|||||
|
Pre/Post trigger |
0-100% |
|
||||
|
Buffer size |
1M |
|||||
|
Sampling selection |
Yes |
|||||
|
Waveform Display |
port/line, waveform average, persistence, intensity |
|||||
|
Network |
Open/Close |
|||||
|
Vertical mode |
CH1, CH2, Dual, ADD |
|||||
|
Cursor measurement |
Yes |
|||||
|
Math |
FFT, addition, subtraction, multiplication, division. |
|||||
|
Cursor |
Frequency, Voltage |
|||||
|
Accessories |
S/W CD, probes, manual, USB cord |
|||||
Software
Sistema operativo: Windows 7, Windows 8, Windows 10, Windows NT, Windows 2000, Windows XP, VISTA
La compra incluye
- Osciloscopio hantek 6022BE
- 2 Punta osciloscopio PP-80
- Cable USB
- CD Drivers
