Kit lectograbador NFC RFID PN532
El PN532 implementa un demodulador y decodificador para señales ISO/IEC 14443A/MIFARE tarjetas y transpondedores compatibles. El PN532 maneja completamente la creación y detención de errores ISO/IEC 14443A (Party & CRC) y FeliCa.
Características:
El PN532 es un modulo integrado transmisor para comunicación sin contacto con la frecuencia 13.56 MHz basado en el microcontrolador 80C51, que soporta 6 diferentes modos:
- ISO/IEC 14443A/MIFARE® Reader/Writer
- FeliCa Reader/Writer
- ISO/IEC 14443B Reader/Writer
- ISO/IEC 14443A/MIFARE Card MIFARE Classic® 1K or MIFARE Classic 4K card emulation mode
- FeliCa Card emulation
- ISO/IEC 18092, ECMA 340 Peer-to-Peer
El PN532 soporta MIFARE 1K clásico o MIFARE 4K clasico, modo tarjeta emulada, El PN532 soporta contactos de comunicación de alta velocidad hasta 424 kbit/s en ambas direcciones usando MIFARE y Felica.
Compatible con tarjetas Mifare 1k, 4k, Ultralight y DesFire
Compatible con tarjetas bajo normas ISO/IEC 14443-4 como las CD97BX, CD light, Desfire, P5CN072 (SMX), Innovision Jewel como las tarjetas IRT5001 y tarjetas FeliCA RCS_860 y RCS_854
Trabaja en modo NFC o Modo RFID lectura/escritura
Arduino compatible
Antena onboard PCB alcance 4cm~6cm
Desplazador de nivel On-board, Standard 5V TTL a I2C y UART, 3.3V TTL SPI
Puede intercambiar datos con otros dispositivos como por ejemplo smart phone
I2C interface seteada como default
4 Agujeros de montaje.
Especificaciones
- Voltaje de Operación: 3.3V - 5V DC
- Frecuencia de operación: 13.56 MHz
- Chip: PN532
- Interfaces: SPI, I2C, UART
- Transferencia de datos: Max. 10Mbit/s
- Tipos de tarjetas compatibles: Mifare1 S50, S70 Mifare1, MIFARE Ultralight, Mifare Pro, Mifare y DESFire.

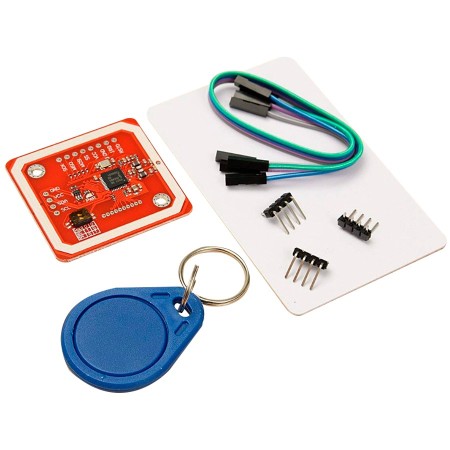

La compra incluye:
- 1 x Modulo NFC RFID
- 1 x Cable de 4 pines
- 1 x Tira 4 pines
- 1 x Tira 8 pines
- 1 x Tarjeta Mifare One S50 blanca
- 1 x Llavero
