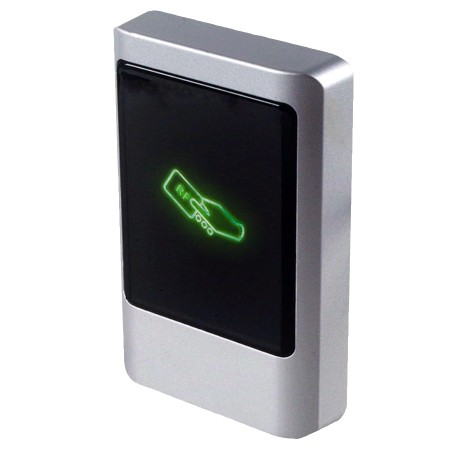

Lector RFID 125KHz a prueba de agua metalico WG26/34
- Rango de lectura de hasta 70-100mm
- Indicador Buzzer
- El color rojo y verde muestra el estado de funcionamiento
- Waterproff ip65 a prueba de agua para Interior/exterior
- Cuerpo metálico resistente
- Lectura de tarjetas Mifare, EM 125Khz
- Voltaje de alimentacion 9v a 15V
- Formato WG26 WG34
Lector de tarjetas RFID a prueba de agua ID IC es el complemento Ideal para su Sistema de Control de acceso, este lector de tarjetas Mifare y EM 125khz es facil de instalar y usar, de material resistente, metalico. Puedes usarlo en cualquier entorno, compatible con WG26 y WG34. Velocidad de respuesta inferior a 0,2 segundos
Indicación Audiovisual: cuando se presenta una tarjeta registrada al lector, el LED rojo parpadea en verde y suena un pitido.
Conexión terminales
- Cable Rojo 12V: conectar a alimentación entre 9 a 15V
- Cable Negro GND: conectar a GND, comunicador host o fuente de energía
- Cable Verde Puerto 0 WG :conectar Data 0 a controlador
- Cable Blanco Puerto 1 WG: conectar Data 1 a controlador
- Cable Amarillo Buzzer: el buzzer sonará cuando entre en contacto con GND
- Cable Cafe LED: la luz iluminará verde cuando entre en contacto con GND
Especificaciones
- Voltaje de funcionamiento: DC9 ~ 16V
- Corriente de trabajo: ≤ 100mA
- Ambiente de trabajo: -20°C ~ 70°C
- Distancia de detección: 70-100mm
- Formato de salida: Wiegand 26 / 34
- Tipo de tarjeta: Mifare one, EM, 125KHZ
- Dimensión: 12.3 x 8.5 x 2.3 cm
- Peso: 210g
La compra incluye
- Lector RFID 125KHz a prueba de agua metalico WG26/34
- Anchura
- 8.5cm
- Profundidad
- 12.2cm
- Peso
- 265g
- Voltaje de operación
- 9v - 16v
- Altura
- 2.3cm
