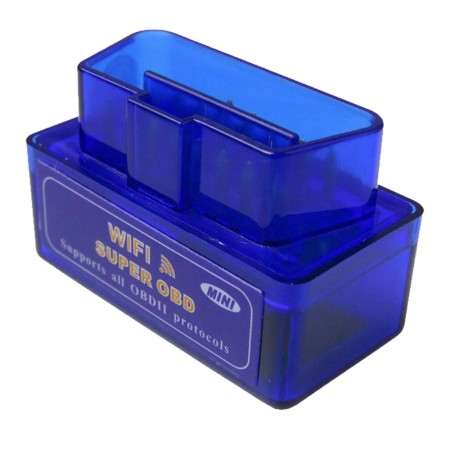

Escaner automotriz WIFI ELM327 ODB2 V1.5
EL ELM2327 es un Escaner automotriz conectándolo directamente en el computador de su automóvil, usando el terminal OBD2, permitiendo conectarse por medio de Wifi.
Este escáner se conecta mediante el puerto de diagnóstico OBD2 con la ECU (unidad de control electrónico) del auto y le permite leer los parámetros utilizando Wifi.
OBD-II (On-Board Diagnostics, Second Generation) es un conjunto de estándares para implementar un sistema basado en computadoras para controlar las emisiones de los vehículos. Es muy común encontrarlo en los autos desde 1996, debido a que es un requerimiento legal tenerlos en muchos países. El conector usado por OBD2 también es estándar: DLC.
La información que se puede obtener al escuchar el bus OBD es muy amplia y depende de cada modelo de auto, va desde el estatus de la luz de mal funcionamiento (MIL), diagnostico de códigos de errores (DTC), información para inspección y mantenimiento (I/M), VIN, cientos de parámetros en tiempo real, y más.
Protocolos soportados por firmware v1.5
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
ESPECIFICACIONES TÉCNICAS
- Soporta:Windows, Android, Ios
- Ssid: WiFi_OBDII
- Ip: 192.168.0.10
- Subred: 255.255.255.0
- Puerto: 35000
- Rango: 15 metros
- Antena: interna
- Consumo de energía: 0.75 vatios (con el interruptor)
- Estándar de wifi: 802.11a/b/g
- Temperatura de funcionamiento:-15 a 100 grados C°
- Plástico: Grado automotor
- Dimensiones físicas: 2.75x1.25x1.2 pulgadas
- Compatible con Auto-Scan Argentina, Piston, MiniOBDII, Torque, ScanMaster (Android)
como usarlo
1.)Conectamos el ELM327 en el conector OBD2 de nuestro vehículo
2.)Encendemos el contacto del vehículo
3.) Vamos a los Ajustes del terminal y activamos el Wifi
4.) Vamos ahora a la App y pulsamos en Ajustes>Conexión>Wifi
5.)Volvemos a la pantalla principal de la App y presionamos conexión
6.) Se nos desplegara un listado para seleccionar la marca de nuestro vehículo
7.) Una vez conectado el dispositivo al coche podremos acceder a las distintas funciones de medición y testeo.
Funciones
- -RPM del motor
- -Cálculo del valor de carga
- -Temperatura del refrigeración
- -Estado del sistema de combustible
- -Velocidad del vehículo -Ajuste de combustible a corto plazo
- -Ajuste de combustible a largo plazo
- -Presión del múltiple entradas
- -Avance de tiempo
- -Temperatura del aire
- -Flujo de aire
- -Posición de acelerador absoluta
- -Estado del sistema de carburador
- -Presión de carburante y testeo.
Características
- Conexión inalámbrica (Wifi)
- Software incluido para la palma, PDA,
- Compatible con Windows, Smartphone Android Ios
- Compatible con SAE J1850 y CAN bus
Lista de compatibilidad
La compra incluye
- -Scanner ELM327 Wifi
- -CD Drivers
- Anchura
- 2.5cm
- Profundidad
- 5cm
- Voltaje de operación
- 12v
- Altura
- 3cm
