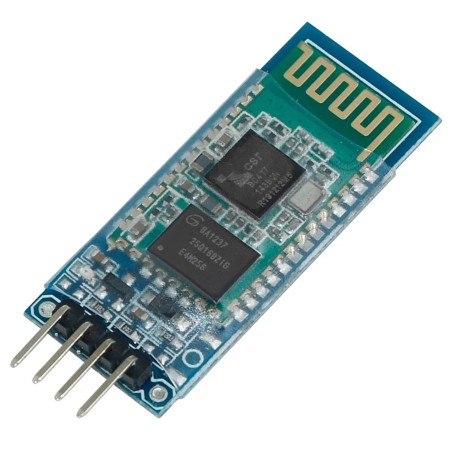

Modulo bluetooth HC-06
Añade conectividad Bluetooth a tus dispositivos con este módulo. Podrás encontrar fácilmente ejemplos de uso para Arduino y otras placas.
Características Principales:
Este módulo te permite agregar conectividad inalámbrica a través de una interfaz serial TTL entre Microcontroladores (PIC, Arduino) y otros dispositivos como PC, laptops o tu Smartphone. El módulo Bluetooth HC-06 viene configurado de fábrica para trabajar como esclavo, es decir, preparado para escuchar peticiones de conexión.
ESPECIFICACIONES TÉCNICAS
- Firmware HC-06-20210910
- Voltaje de Operación: 5 V.
- Corriente de Operación: < 40 mA
- Corriente modo sleep: < 1 mA
- Chip: BC417143
- Alcance 10 metros
- Velocidad de transmisión: 1200 bps hasta 1.3 Mbps
- Baudrate por defecto: 9600,8,1,n.
- Bluetooth: V2.0+EDR
- Longitud de cable: 21.5 cm
- Frecuencia: Banda ISM de 2,4 GHz
- Modulación: GFSK (Gaussian Frequency Shift Keying)
- Potencia de emisión: 4 dBm, clase 2
- Sensibilidad: -84 dBm a 0.1% VER
- Velocidad asíncrona: 2.1 Mbps (máx.) / 160 kbps.
- Velocidad síncronos: 1 Mbps/1 Mbps
- Seguridad: Autenticación y encriptación
- Interfaz: Bluetooth - Puerto serie UART TTL
El estándar Bluetooth está basado en un modo operacional maestro/esclavo.
- Slave: funciona solo como esclavo en la comunicación, es decir, espera a que el maestro le dé una orden.
- Host: funciona solo como anfitrión (maestro) de la comunicación, es decir, escoge con qué esclavo comunicarse.
- Host/Slave: puede funcionar como ambos, es configurable a través comandos AT.
El módulo Bluetooth HC-06 viene configurado de fábrica para trabajar como Slave.
PARÁMETROS DE FÁBRICA
- Baudrate: 9600, N, 8,1
- Nombre: HC-06 o Linvor
- Código Pin: 1234
TUTORIALES
DOCUMENTACIÓN
- Anchura
- 1.5 cm
- Peso
- 3 gramos
- Altura
- 3.7 cm
