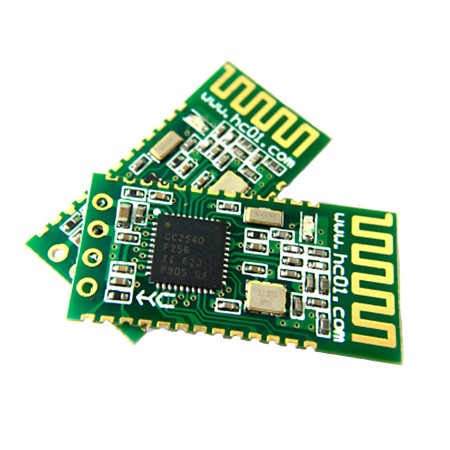

Modulo HC-08 bluetooth 4.0 BLE a UART
zoom_out_map
chevron_left chevron_right
-12%

Modulo HC-08 bluetooth 4.0 BLE a UART

Modulo HC-08 bluetooth 4.0 BLE a UART

Cantidad Descuento unitario Usted ahorra
10 14% $ 23.691,04
30 16% $ 81.226,42
50 18% $ 152.299,53
100 20% $ 338.443,40

$ 14.891,51 Impuestos no incluidos

14891.51 Impuestos no incluidos

$ 16.922,17 -12%

check En stock

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad
Política de entrega
Política de devolución

Descripción


El modulo HC-08 Bluetooth a UART es parte de una nueva generación de dispositivos de transmisión de datos usando el protocolo V4.0 BLE. Con una frecuencia de trabajo de 2.4GHz ISM, modulacion GFSK, maximo poder de transmision de 4dBm, sensibilidad de recepción de -93dBm, 80 metros de distancia de comunicación con iPhones (Por lo menos 4S) en un ambiente sin obstáculos.

Diseño de placa de tamaño 26.9mm * 13mm * 2.2mm, facil de soldar y parchear. Con el chip CC2540, 256k Byte de espacio y con comandos AT, el usuario puede cambiar los modos, la frecuencia de baud serial, nombre de equipo y otros parámetros fácilmente.

Especificaciones

  • Chip TI CC2540, V4.0 BLE
  • Voltaje de operación: 2.6v - 4.2v
  • Frecuencia de baud: 9600 (Modificable)
  • Modos Master/Slave soportados
  • Tamaño modular: 26.9mm * 13mm * 2.2mm

Caracteristicas

  • Consumo super bajo, en el "Modo 2" el consumo en standby es de solo 0.4uA y en "Modo 3" es de alrededor de 1.2 - 1.6uA
  • En el "Modo 3" puede ser activado inalámbricamente con tan poco como 1 byte de dato.
  • Puede cambiarse entre los modos Central, Periférico, Observador o Transmisor
  • Se puede ajustar el poder de la frecuencia de radio para alcanzar las distancias de transmisión deseadas (2m a 60m)
  • La frecuencia de Baud, Nombre, pueden ser seteados por comandos AT con funciones de memoria

La Compra Incluye

  • 1 Modulo HC-08
HC-08-BLUETOOTH
