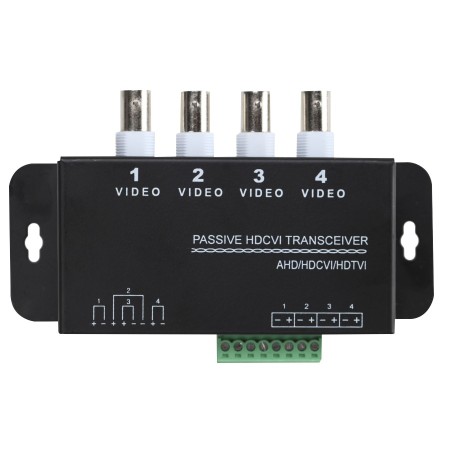

Balun pasivo 4 canales 300m 1080p
Es un balun de vídeo HD que nos permite transmitir la señal de vídeo de cuatro cámaras de seguridad hasta el grabador o DVR por cable UTP.
Simplifica el proyecto de cableado y ahorrar el uso excesivo de cables.
Con un solo Balun podrás conectar 4 entradas al grabador o DVR y dar salida a 4 pares trenzados del cable red. Ordenarás de una manera más eficiente el cableado de tu instalación CCTV.
Este articulo permite la transmisión de cualquier señal ( AHD / HDCVI / HDTVI )
La conexión con el cable de red se realiza mediante atornillado o mediante ficha rj45.
Este balun agrupado funciona como transmisor y receptor y tiene una distancia máxima de 300 m.
Características:
- Transceptor pasivo de 4 canales de vídeo por cable UTP
- Compatible con AHD / HDCVI / HDTVI (720p / 1080p)
- Emisor / receptor, transmite la señal de hasta cuatro fuentes de vídeo por un cable UTP
- Inmunidad contra la interferencia, asegura imágenes de gran calidad
- Diseñado para facilitar la instalación y conexión a videocámaras y grabadores
- Funciona con cualquier equipo de vídeo analógico, cámaras de circuito cerrado, vídeo multiplexores, monitores, etc.
Especificaciones:
- Señal de transmisión: 4 canales
- Distancia de transmisión: 0 – 300 m
- Tipo de cable: UTP Cat. 5 / 5E / 6
- Conector coaxial de vídeo: BNC macho
- Conector cable de datos: RJ45, Bornera de 4 contactos
- Formatos compatibles: AHD / HDCVI / HDTVI / CVBS (720p / 1080p)
- Protección interferencias: > 60 dB
- Protección del conector del cable coaxial: 2 kV (par común) IEC 61000-4-5
- Protección del cable UTP: 2 kV (par distinto), 4 kV (par común) IEC 61000-4-2
- Impedancia BNC: 75 Ω
- Impedancia cable UTP: 100 Ω
- Material: metalico
- Peso: 196 g
- Dimensiones:Alto 80 mm, Largo 160 mm, Ancho 30 mm
La compra incluye:
- Balun pasivo 4 canales
- Anchura
- 7cm
- Profundidad
- 13cm
- Protocolos Soportados
- AHD / HDCVI / HDTVI (720p / 1080p)
- Altura
- 2cm
