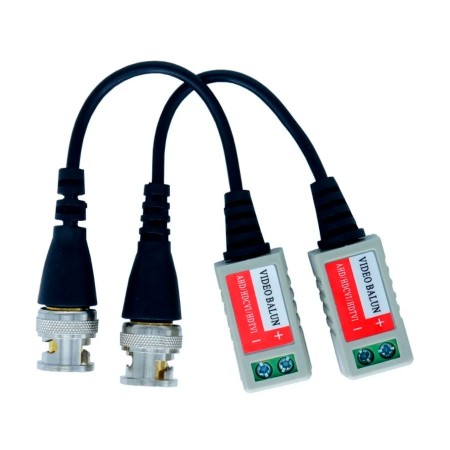

Balun pasivo par BNC hasta 300m HD AHD/HDCVI/HDTVI
Características:
- Distancia de transmisión:
- Hasta 400M para HD-CVI 720P cámara digital
- Hasta 200M para HD-CVI 1080P cámara digital
- Hasta 200M para HD-TVI 720P / 1080P cámara digital
- Hasta 400M para cámara analógica AHD 720P / 960P / 1080p
- Anti interferencia:> 60dB
- Impedancia: BNC macho = 75 ohmios, cable UPT = 100 ohmios
- Conexión de terminal bornera para cable UTP
- Built-in TVS (supresor de voltaje transitorio) para protección contra sobretensiones
- Diseño de protección contra rayos
Especificaciones:
- Estabilidad MTBF: > 10000H
- Señal de transmisión: 1 canal
- Distancia de transmisión: AHD/CVI: 300m TVI: 200m
- Soporta: UTP Cat5/5e Cat 6
- Conector de video coaxial: BNC-M
- Conector de video de par trenzado: Bornera
- Formato compatible: AHD/HDCVI/HDTVI
- Resolución: 720 P /1080 P
- Anti interferencia: > 60dB
- ESD:1a descarga de contacto nivel de electricidad 3 / 1b nivel de electricidad de descarga de aire 3 / Por: IEC61000-4-2
- Conector de cable coaxial: 2KV (código común) Por: IEC1000-4-5
- Conector de cable UTP: 2KV (código diferente), 4KV (código común), por: IEC1000-4-5
- Impedancia BNC macho: 75Ohms, Cable UPT 100Ohms
La compra incluye:
-
1 x 2 piezas BNC Conector
- Anchura
- 1.5cm
- Profundidad
- 18cm
- Altura
- 2cm
