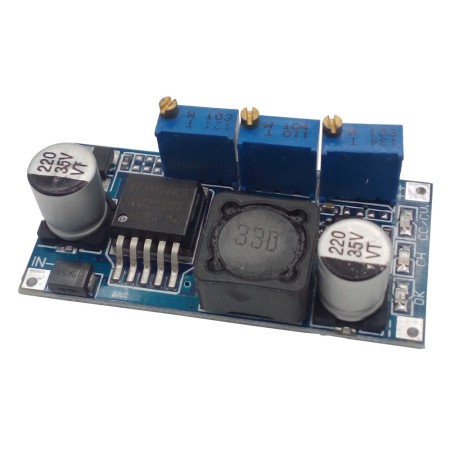

Modulo Lm2596 Step-down Corriente Ajustable
Módulo de Fuente de Alimentación DC-DC Ajustable CC/CV con Chip LM2596.
Ideal para la carga de baterías, cuenta con 3 presets con los cuales puedes regular el voltaje de salida, corte por carga completa y corriente de salida.
es una fuente basada en el regulador step-down DC-DC LM2596. Posee un preset multivuelta de alta precisión y es capaz de alimentar una carga de hasta 3A con una alta eficiencia regulando el voltaje de salida dentro de los rango de trabajo del dispositivo.
Este circuito te permite tener un voltaje regulado a partir de una fuente de alimentación con un voltaje mayor, por ejemplo si tienes una fuente de 12V puedes regularlos a 5V, 3.3V, 2.2V, etc, ideal para el uso con microcontroladores, Arduino, PICs, Raspberry Pi, fuentes variables, drivers para leds, Paneles Solares, Turbinas de viento, etc.
Características
- Posee LED indicador de carga completa para cargar baterías de litio.
- Cargador para Baterias de Litio (o ferroeléctricas).
- Tensión de carga ajustable: 4 v, 6 v, 12 v, 14 v, 24 v.
- Cargador para Baterías Níquel Cadmio (Ni-Cd) y Níquel Metal Hidruro (Ni-MH).
Dispone de tres presets multivuelta, con los que se ajusta:
- 1) Tensión de salida
- 2) Corriente máxima de salida
- 3) Punto de “carga completa” en caso de estar cumpliendo la función de cargador de batería.
Detalle de la placa
- input + bornera para alimentación con DC entre 4 40v
- input - bornera para alimentación con DC entre 4 40v
- output + salida regulada 1.25V to 35V
- output - salida regulada 1.25V to 35V
- preset 1 regulacion del voltaje de salida
- preset 2 regulación del corte por carga completa
- preset 3 regulación de corriente de salida
- cccv light indicador de funcionamiento
- full charged light indicador de carga completa
- output light indicador de carga en proceso
Especificaciones técnicas
- Tensión de entrada: 4V-40V
- Corriente de salida : 3A (máx), 2A sin disipador
- Tensión de salida: 1.25V to 35V
- Frecuencia de trabajo: 150kHz
- Regulación de carga: ± 0.5%
- Temperatura de trabajo: -40C to +85C
- Rendimiento: 92% (máx)
- Potencia de salida: 15W (máx), sin disipador
- Ripple de salida: 50mV (máx)
- Regulación de tensión: ±2.5%
- Dimensiones: 48mm x 23 mm x 14 mm
La compra incluye
- Modulo Step-down/carga Batería Lm2596
- Anchura
- 2.5cm
- Profundidad
- 5cm
- Altura
- 1.5cm
