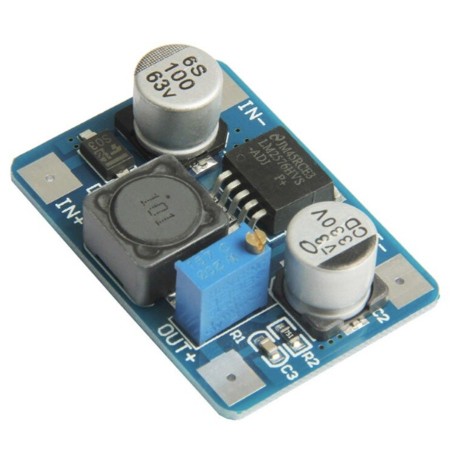

Adaptador de tensión DC-DC STEP DOWN 60V 3A 20W
Es una fuente basada en el regulador step-down DC-DC LM2576HV. Posee un preset multivuelta de alta precisión y es capaz de alimentar una carga de hasta 3A con una gran eficiencia.
Agregue un convertidor reductor de potencia fácilmente a su proyecto con este modulo Step down. Puedes ingresar con una tensión 5 - 60V y regular la tensión de La salida en un rango de 1.25 a 26V.
Este circuito te permite tener un voltaje regulado a partir de una fuente de alimentación con un voltaje mayor, por ejemplo si tienes una fuente de 12V puedes regularlos a 5V, 3.3V, 2.2V, etc, para el uso con microcontroladores, Arduino, PICs, Raspberry Pi, fuentes variables, drivers para leds, etc.
Basado en el Regulador DC-DC Step Down LM2576HV que es un circuito integrado monolítico adecuado para el diseño fácil y conveniente de una fuente de conmutación tipo buck. Es capaz de conducir una corriente de hasta 3A. Maneja una carga con excelente regulación de línea y bajo voltaje de rizado.
El módulo reduce al mínimo el uso de componentes externos para simplificar el diseño de fuentes de alimentación.
Especificaciones
- Eficiencia de conversión: hasta 92%
- Frecuencia de conmutación: 150 kHz
- Voltaje de entrada: 5 - 60V
- Voltaje de salida: 1.25 - 26V
- Corriente de salida: corriente nominal 2A, máximo 3A (se requiere disipador de calor adicional)
- Ondulación de salida: <30mA
- Rectificador: rectificación no sincrónica
- Propiedades del módulo: módulo reductor no aislado (buck)
- Protección contra cortocircuitos: limitación de corriente, desde la recuperación
- Temperatura de funcionamiento: -40 a 85 ° C
- Aumento de temperatura a plena carga: 40 ° C
- Regulación de carga: ± 0.5%
- Regulación de voltaje: ± 0.5%
- Velocidad de respuesta dinámica: 5% 200uS
- Dimensiones: 44 x 30 x 14 mm
- Peso: 14g
La compra incluye
- Modulo step down LM2576HV
- Anchura
- 3.0mm
- Profundidad
- 4.3cm
- Voltaje de operación
- 5 V - 60 V
- Altura
- 1.2mm
