Módulo sensor de presión y temperatura BMP280
El sensor BMP280 es un sensor de presión atmosférica de alta precisión.
Es capaz de leer presión barométrica (absoluta) y temperatura.
Módulo sensor de presión y temperatura BMP280
El sensor BMP280 integra en un solo dispositivo sensores de presión atmosférica, temperatura, con gran precisión, bajo consumo energético y un formato ultra compacto. Basado en tecnología BOSCH piezo-resistiva con gran robustez EMC, alta precisión y linealidad, así como con estabilidad a largo plazo. Se conecta directamente a un microcontrolador a través de I2C o SPI.
La etapa de sensado de presión es similar al sensor BMP280, y por lo tanto es superior al BMP180.
Este tipo de sensores pueden ser utilizados para calcular la altitud con gran precisión (barómetro), por lo que es un sensor muy utilizado en sistemas de Autopiloto para Drones (UAVs) entregando medidas de altitud con una precisión de hasta 1m. Otras aplicaciones son: Monitoreo de clima, Monitor de salud/fitness, Automatización del hogar o Domótica y Aire acondicionado.
ESPECIFICACIONES TÉCNICAS
- Voltaje de Operación: 1.8V - 3.3V DC
- Interfaz de comunicación: I2C o SPI (3.3V)
- Rango de Presión: 300 a 1100 hPa
- Resolución: 0.16 Pa
- Precisión absoluta: 1 hPa
- Rango de Temperatura: -40°C a 85°C
- Resolución de temperatura: 0.01°C
- Precisión Temperatura: 1°C
- Precisión de HR: +-3%
- Ultra-bajo consumo de energía
- Completamente calibrado
- Frecuencia de Muestreo: 157 Hz (máx.)
LINKS
La compra incluye
-

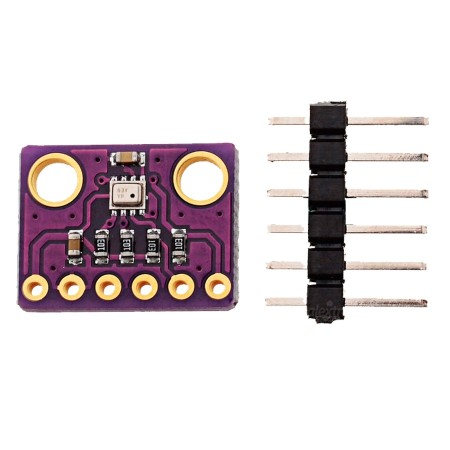

Módulo sensor BMP280
-
Pines
- Anchura
- 1cm
- Profundidad
- 2cm
- Voltaje de operación
- 1.8V - 3.3V DC
