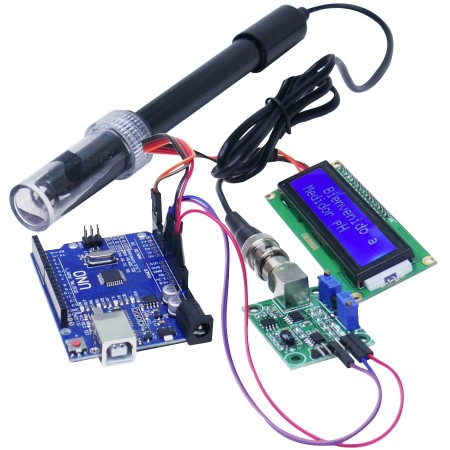

Kit Medidor de PH Compatible Arduino UNO + LCD1602 con I2C
Este es un kit medidor de PH para que hagas en tu casa, basado en el Arduino UNO SMD. El diagrama de conexiones, el código para cargar en el arduino y el paso a paso para configurarlo lo vas a encontrar en el vidoe adjunto y en los links de esta publicacion.
Es ideal para todos los usuarios que quieran realizar trabajos de medición del PH en líquidos, de forma profesional y precisa.
Se adapta perfectamente a todo tipo de proyectos como hidroponia, jardinería, fabricación de cerveza, agua de riego, cosmetica y mucho más.
Descripción general del funcionamiento y armado del kit para que lo armes vos mismo:
El módulo PH-4502C es un dispositivo que se conecta al electrodo E201-BNC (la sonda para la medición de PH). La alimentación del módulo es de 5V lo que lo hace compatible con tecnologías TTL como Arduino, PIC, AVR, DSP, Raspberry entre otros.
El display 16x2 que trae este kit nos mostrara las mediciones de PH en tiempo real
El módulo cuenta con un potenciómetro de ajuste que te ayuda a calibrar la medición de PH (es el que se encuentra más cercano al conector BNC).
El pin Po puede conectarse directamente a un pin analógico de un Arduino, PIC o cualquier tecnología TTL, por lo que no es necesario alguna librería especifica para que podamos utilizarlo. Como adicional cuenta con dos indicadores LED uno para señalar la alimentación del circuito y otro para señalar la salida Do.
Especificaciones
- Rango de concentración de detección: PH0-14
- Rango de temperatura de detección: 0-80
- Tiempo de respuesta: ≤5S
- Tiempo estable: ≤ 60 S
- Humedad de funcionamiento: 95% RH (humedad nominal 65% RH)
- Vida útil: 3 años
La kit incluye
- Arduino UNO SMD
- Cable USB Arduino UNO
- Modulo sensor de PH-4502C
- E201-BNC Sensor en boquilla conector BNC
- Módulo LCD 1602 con I2C
- 40 Cables Dupont Macho hembra
