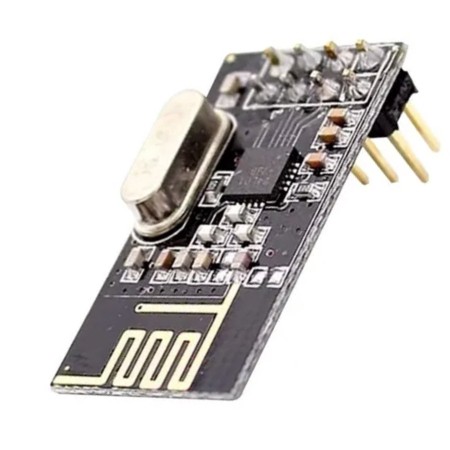

Módulo Transceptor Rf NRF24L01 2.4Ghz
Ideal para proyectos de telemetría, control de periféricos, industria y afines.
Descripción:
Este módulo utiliza el nuevo transceptor de 2,4GHz de Nordic Semiconductor, el NRF24L01 que opera en la banda de 2.4GHz (Industrial, Científica y Médica) y tiene nuevas características, como su consumo ultra bajo (ULP). El chip Nordic nRF24L01+ integra un completo transceiver de 2.4Ghz, Sintetizador RF, y lógica como el mejorado ShockBurst™, que es un acelerador de protocolo por hardware para comunicación por SPI con microcontrolador.
El módulo posee 8 pines (headers macho) a través de los que se alimenta (3.3V) y se comunica mediante SPI.
ESPECIFICACIONES TÉCNICAS
- Fuente de alimentación: 1.9 ~ 3.6V
- Voltaje de funcionamiento del puerto IO: 0 ~ 3.3v / 5v (Tolerante a 5V)
- Tasa de transmisión: + 7 dB
- Recepción de sensibilidad: ≤ -90dB
- El alcance de transmisión: 250 m en zona abierta
- Dimensiones: 15 x 29 mm
CARACTERÍSTICAS
- Funcionamiento en la banda ISM de 2,4 GHz, por lo que no necesita licencia y es libre en todo el mundo
- 3 Velocidades de Datos seleccionables: 250 Kbps, 1Mbps y 2Mbps
- Acelerador por hardware del protocolo SPI (ShockBurst ™)
- Consumo energético ultra bajo, capaz de durar años utilizando una batería
TUTORIALES
La compra incluye:
- Modulo Transceptor Rf NRF24L01 2.4ghz
