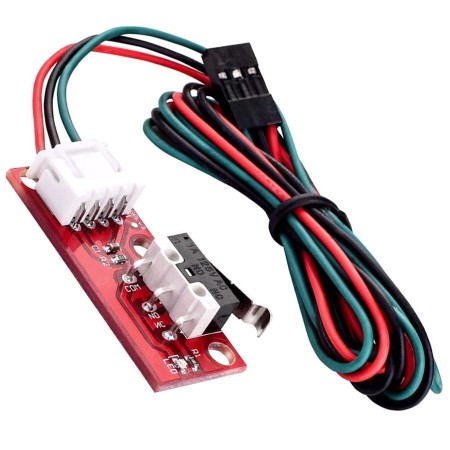

Modulo fin de carrera con cable

Interruptor final de carrera EndStop prusa iprusa + cable y conector de 3 pines, ideal para ramps interruptor de final de carrera de 1.4 mendel reprap impresoras 3D

Cantidad Descuento unitario Usted ahorra
10 22% $ 7.597,46
30 24% $ 24.864,41
50 26% $ 44.894,07
100 28% $ 96.694,92

$ 2.762,71 Impuestos no incluidos

2762.71 Impuestos no incluidos

$ 3.453,39 -20%

check En stock

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad
Política de entrega
Política de devolución

Endstop mecánico para impresoras 3d RepRap o máquinas CNC. es compatible con los componentes electrónicos RepRap, RAMPS 1.4 y otras placas RepRap populares.



Conexión personalizada de alta calidad, usando cable 22AWG, el cable de cobre en el interior es muy grueso, puede resistir corriente de 2A, voltaje de 300V, Cuenta con una capa aislante en un amplio rango de temperaturas, hasta 80 grados.



No es necesario soldar ya que incluye cable con conectores en ambos extremos



 Puede usar el conector integrador para facilitar su uso



Consejos: En circunstancias normales, el sistema debe estar configurado para al menos tres interruptores mecánicos.



Descripción de la conexión:

  • Línea roja conecta VCC (ramps de +)
  • Linea Negra Conecta GND (ramps de -)
  • Línea verde Señal de conexión (ramps en s)



ESPECIFICACIONES

  • Tipo de cable: 22 AWG
  • Voltaje de funcionamiento / corriente: 300V / 2A
  • Resistencia a la temperatura: 80 grados centígrados
  • línea roja VCC conexión (ramps de +)
  • Longitud del cable: 70 cm
  • Tamaño: 32 x 10 mm

La compra incluye

  • Modulo fin de carrera con cable
ENDSTOP-MOD-1
