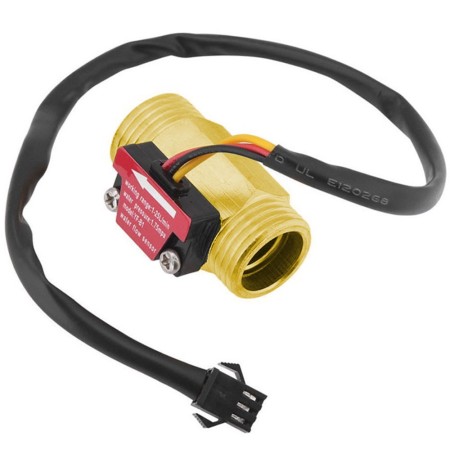

Caudalímetro 1 a 25L/min con rosca G1/2 YF-B1
- Presión máxima del agua:1.75MPa
- Rango de caudal: 1-25L/min.
- Rosca G 1/2" media pulgada
- Cuerpo metálico
- Resistente a altas temperaturas y uso prolongados
- Ligero, de Tamaño pequeño, fácil de instalar.
- Diseño a prueba de agua para evitar la entrada de agua en el sensor hall.
- El interior del impulsor está incrustado con un eje de acero inoxidable y resistente al desgaste.
- Conexión de tres cables: Rojo para positivo, negro para negativo, amarillo para señal de pulso.
Aplicación:termostato del calentador de agua, purificador de agua, caldera, dispensadores de agua, máquinas de café, etc.
ESPECIFICACIONES
- Modelo: YF-SB1
- Tipo de sensor: efecto Hall
- Material: LATÓN Plateado
- Rosca externa: G 1/2"
- Posición de montaje: Horizontal Vertical
- Tensión de trabajo: 5V - 18V. (recomendado 12)
- Corriente de funcionamiento Máx.: 15mA (5V)
- Tipo de salida: 5V TTL
- Resistencia de aislamiento> 100MΩ
- Caudal de trabajo: 1 L/m a 30 L/m.
- Presión máxima del agua: 1.75MPa
- Precisión: ± 2% -5%
- Temperatura de funcionamiento: -40ºC a +80ºC.
- Temperatura del líquido: No más de 120°C
- Rango de humedad de trabajo: 25% -95% HR
- Ciclo de trabajo de salida: 50% + -10%
- Pulsos de salida: 477 pulsos por litro de agua (16 a 357Hz)
- Pulso de velocidad de flujo: Frecuencia (Hz) = 11 * Q ± 5% *Caudal (L / min)
- Dimensiones:44mm x 28mm x 28 mm
- Cable Rojo: Conector alimentación positivo.
- Cable Negro: Conector alimentación negativo.
- Cable Amarillo: Salida de señal.
- Longitud del cable: 30cm
- Grado de protección de entrada: IP65
- Peso: 76g
LA COMPRA INCLUYE
- 1 Caudalimetro Sensor Flujo 1 a 25 L/min YF-B1
