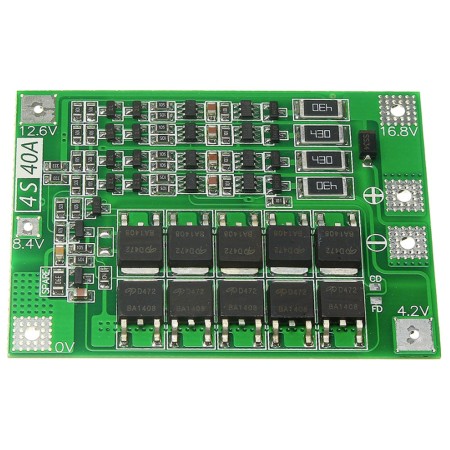

Protección y Cargador de batería de litio hasta 4 celdas 16.8V
Modulo Placa Protección Bms para baterías 18650 Li-ion 16.8V ~ 18.1V de 40A con función de balanceo de carga
- Para baterías con un voltaje Nominal de 3,6V, 3,7 V batería de litio (incluyendo 18650, 26650, batería de polímero de litio)
- Voltaje de carga: 16,8 V-18,1 V
- Corriente de descarga continua: 40A
- Corriente de carga continua: 20A
- Protección BMS Balanceo de carga Protección sobre descarga protección sobrecarga
Se trata de un circuito de detección de voltaje de alta precisión para extender a vida útil de las baterías eliminando principalmente las sobrecargas.
El transistor MOSFET puede controlar la carga y descarga de la batería, bajo consumo de corriente en espera.
Aplicaciones: Ideal para taladro eléctrico, luces y herramientas a batería
Especificaciones
- Voltaje de carga: 16.8v ~ 18.1v Sobrevoltaje de
- carga: 4.25 ± 0.05v Sobrevoltaje de
- descarga: 2.5v ± 0.05v
- Corriente de descarga continua (límite superior): 40A (si el ambiente de enfriamiento no es bueno, reduzca la corriente de carga )
- Corriente de carga continua (límite superior): 20A
- Resistencia interna: Menos de 100mΩ
- Temperatura de trabajo: -40 ~ + 50Celsius
- Temperatura de almacenamiento: -40 ~ + 80Celsius
- Peso: 8.8g
- Tamaño: 46 mm × 60 mm × 3.4mm / 1.81 ″ × 2.36 ″ × 0.13 ″
La compra incluye
- 1 Cargador de bateria de litio de 4 celdas 16.8V 40A
