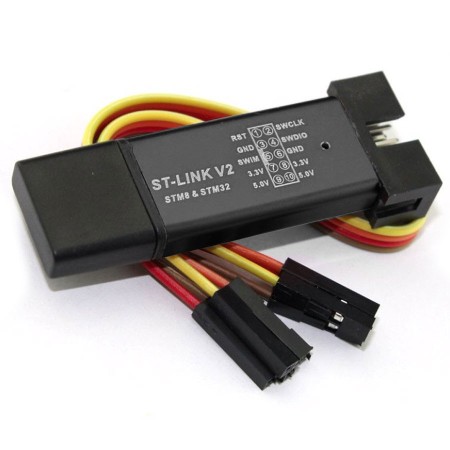

Programador STM ST-LINK V2 de microcontroladores STM8 y STM32
El ST-LINK / V2 es un depurador y programador STM para las familias de microcontroladores STM8 y STM32.
- Fácil de usar
- Admite la gama completa de interfaz de depuración SWD STC8 STC32
- Admiten entornos de desarrollo comunes como IAR, STVD, etc.
- Interfaz simple de 4 hilos (incluida la alimentación)
- Soporte para actualizaciones automáticas de firmware
- Resistente carcasa de aluminio con disco en U protege la placa base.
- Cuerpo contra electricidad estática
- Fácil de transportar
El programador y depurador ST-Link V2 es la herramienta fundamental para los desarrolladores de sistemas embebidos que desean utilizar los microcontroladores de la serie STM32 y STM8, es compatible con Linux y Windows, usando las herramientas CoCoox IDE o Keil MDK de ARM.
El ST-LINK V2 es totalmente compatible con la versión oficial, permite las actualizaciones automáticas, admite la gama completa STM32 SWD (solo 4pins incluyendo SWCLK, SWDIO, y la alimentación) y gama completa STM8 SWIM (solo 4pins incluyendo SWIM, Reset y la alimentación) para programación y depuración.
Programe puntos de control, y verifique el valor de variables para identificar fallas en la ejecución, ejecute línea por línea y modifique en tiempo real el valor de variables en RAM o de la configuración del HW del microcontrolador.
Características
- PCB instalada en el interior del armazón de aluminio del tipo U-Shell, portátil, robusta, segura y confiable
- Definición de pines de interfaz directamente impresa en la carcasa, clara, conveniente y practica
- Niveles lógicos de 5V y 3.3V, lo que le permite programar su placa tanto con 5V y 3.3V
- Fusible interno reseteable de 500MA para proteger el ordenador.
- LED indicadores de color rojo y azul, que permite observar siempre las condiciones de trabajo del ST-LINK V2
- Incluye cable de 4 líneas DuPont, para que pueda programar fácilmente diferentes placas de destino
Software soportados
- ST - LINK Utility 2.0 o superior
- STVD 2 o superior
- STVP 3.2.3 o superior
- IAR EWARM V6.20 o superior
- IAR EWSTM8 V1.30 o superior
- KEIL RVMDK V4.21 o superior
- Admite cambio automático de firmware
Especificaciones
- Alimentación USB de 5 V
- Interfaz USB 2.0 de alta velocidad compatible
- Voltaje de aplicación de 1.65 V a 5.5 V compatible con la interfaz SWIM
- SWIM de baja velocidad y modos de alta velocidad compatibles
- Velocidad de programación de SWIM: 9.7 Kbytes / s en baja velocidad y 12.8 Kbytes / s en alta velocidad
- JTAG soportado, características específicas de JTAG / serial wire debugging (SWD):
- Voltaje de aplicación de 1.65 V a 3.6 V admitido en la interfaz JTAG / SWD y entradas de 5 V tolerantes
- Compatible con SWD y comunicación de visor de cables serie (SWV)
- Se admite la función de actualización directa de firmware (DFU)
- LED de estado que parpadea durante la comunicación con la PC
La compra incluye
- Programador ST-LINK V2
- Incluye cables de conexión
