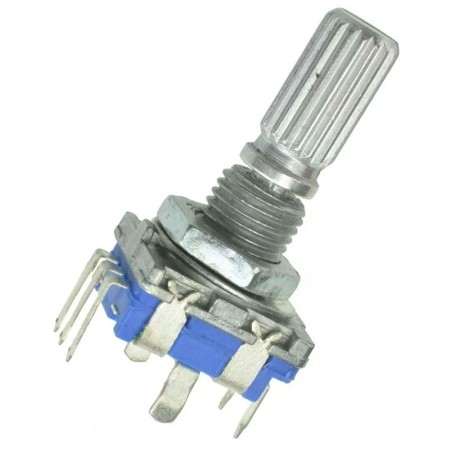

Encoder rotativo 20 pulsos por vuelta
Codificador rotatorio, interruptor de código EC11 potenciómetro digital de audio, con interruptor, 5 Pines, longitud de mango 20 mm.
Descripción
Un codificador rotativo es un elemento que indica mediante un salida codificadas su posición.
El funcionamiento del codificador rotativo es muy sencillo, al girar el eje se generan dos señales cuadradas llamadas canal A y B, si el pin común es puesto a masa y el canal A y B con resistencias de pull-up a Vcc, las señales A y B generadas están desfasadas 90 grados y su secuencia es (A,B):(1,0; 1,1; 01) en un sentido de giro, y (A,B):(0,1; 1,1; 10) en el otro. Esto se conoce como código Grey de 2 bits.
La clave es detectar el flanco de bajada del canal A. En ese momento el sentido de la rotación vienen determinado por el valor del canal B. Hay varios métodos para detectar el código por software y hardware
ESPECIFICACIONES TÉCNICAS
- Longitud del eje: Aprox. 12mm
- Eje Integral: Aprox. 20mm
- Diámetro del eje: Aprox. 6mm
- Dimensiones (L x W): Aprox. 15 x 12 mm
- Posición: 20
- Pulso por vuelta : 20
- Salida: código Gray de 2 bits
- Resistencia del circuito Cerrado: 3 ohmios máximos
- Corriente máxima de los contactos: 10 mA a 5 VCC
- Rango de temperatura: -30 a 70 grados centígrados
- Temperatura de almacenamiento: -30 a 70 grados centígrados
- Mínimo ciclo de vida rotativo: 30.000 ciclos
- Mínimo ciclo de vida pulsador: 20.000 ciclos
La compra incluye
- Encoder Rotativo EC11
