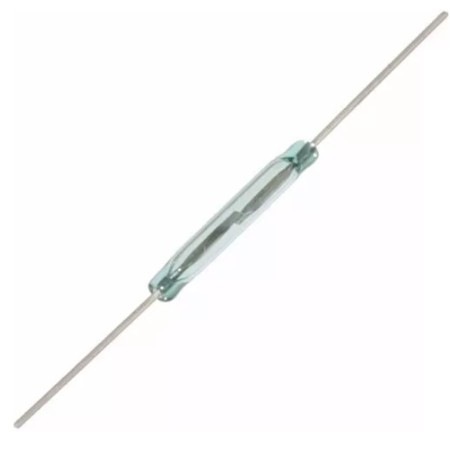

Reed switch / Interruptor magnetico 2x14mm
zoom_out_map
chevron_left chevron_right
-31%

Reed switch / Interruptor magnético 2x14mm

  • Voltaje: 100V
  • Corriente: 1A
  • Dimensiones:  2 x 14mm
Cantidad Descuento unitario Usted ahorra
10 33% $ 5.454,54
30 35% $ 17.355,35
50 37% $ 30.578,47
100 39% $ 64.462,71

$ 1.140,49 Impuestos no incluidos

1140.49 Impuestos no incluidos

$ 1.652,89 -31%

check En stock

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details

Política de seguridad
Política de entrega
Política de devolución

LA PUBLICACIÓN CORRESPONDE A UNA UNIDAD DE REED SWITCH
-las imágenes son ilustrativas-
Un reed switch o interruptor de lengüeta es un interruptor eléctrico activado por un campo magnético.
Cuando los contactos están normal abierto (el circuito se cierra con la presencia de un iman)
El reed switch consiste en un par de contactos ferrosos encerrados al vacío dentro un tubo de vidrio. Cada contacto está sellado en los extremos opuestos del tubo de vidrio. El tubo de vidrio puede tener unos 10 mm de largo por 3 mm de diámetro.
Al acercarse a un campo magnético, los contactos se unen cerrando un circuito eléctrico. La rigidez de los contactos hará que se separen al desaparecer el campo magnético. Para asegurar la durabilidad, la punta de los contactos tiene un baño de un metal precioso.

Especificaciones

  • Voltaje: 100V
  • Corriente: 1A
  • Dimensiones: 14 x 2mm del reed switch.

La compra incluye:

  • Reed switch / Interruptor magnético 2x14mm

REED-SWITCH-2X14MM
