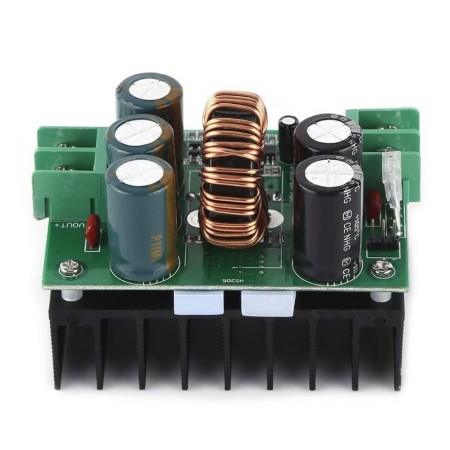

Convertidor Dc-dc Step Up Boost 1200w Booster 12-80v / 20a
- Superficie aerodinámica
- Voltaje de entrada: 8-60V
- Voltaje de salida: 12-80V ajustable
- Corriente de entrada: 20 A
- Corriente de salida: 20A
- Bajo calor y alta eficiencia.
- Protección contra sobrecorriente: Si
- Protección contra corto circuito: Si
- Larga vida útil
Este modulo DC-DC de 1200w es de alta potencia, eficiente y estable, cuenta con una superficie aerodinámica, el efecto de disipación de calor es muy bueno y la potencia de salida es mayor, (puede usar dos módulos en paralelo, como la salida a 30A, dos módulos se pueden ajustar a 15A).
El microprocesador instalado te permite establecer los parámetros deseados de manera rápida y precisa.
Incluye disipador (largo 85 MM * ancho 62 MM * alto 25 MM). En caso de que la temperatura del dispositivo se eleve por encima de los 60C deberá utilizar un sistema de refrigeración adecuado para disminuir la misma y mantenerlo dentro de los parámetros de funcionamiento.
El regulador admite un voltaje de entrada amplio de 12-60 V, voltaje de salida ajustable de 12-80 V, presión diferencial de entrada y salida ultra baja.
Anillo magnético de hierro, silicio, aluminio de gran tamaño 27mm, que utiliza 3 1.2 líneas de envoltura de esmalte de cobre grueso esmaltado doble y alrededor, bajo calor y alta eficiencia.
El regulador de voltaje cuenta con protección contra sobrecorriente y Protección contra corto circuito
Trabajo de corriente constante de alta capacidad Ideal para baterías de litio recargables.
Aplicaciones
- Tensión 12-80V ajustable.
- Ajuste del voltaje de salida.
- Como fuente de alimentación del vehículo para su portátil, PDA o productos digitales.
- Regulador de panel solar.
- Batería de litio para carga.
- Conducción de luces LED de alta potencia.
Especificaciones
- Módulo: Step up BOOST
- Voltaje de entrada: 8-60V
- Voltaje de salida: 12-80V ajustable
- Corriente de salida: 0.5-20A Ajustable
- Temperatura de trabajo: -40C a 60C (utilizar refrigeración adecuada cuando sea necesario)
- Corriente máxima de entrada: 20A
- Frecuencia de conversión: 150KHZ
- Eficiencia: mayor a 95%
- Protección contra sobrecorriente: Si
- Protección contra corto circuito: Si
- Tamaño: 85 x 63 x 64mm
- Peso: 350g
La compra incluye:
- Regulador de voltaje Step Up hasta 83V 15A 1200W
