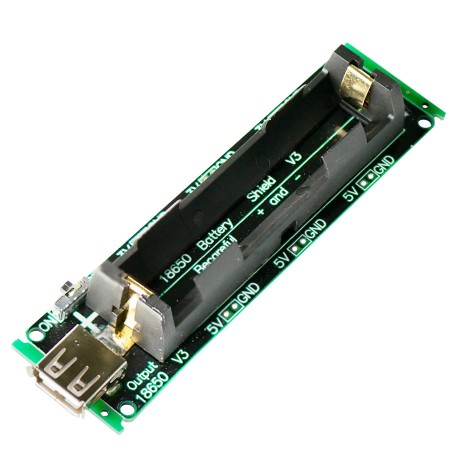

Shield cargador de batería 18650 con protección Compatible con Arduino, Raspberry y otros
Es Ideal para hacer protector con arduino, raspberry o cualquier otra plataforma sumándole una batería recargable.
- Protección de la batería (sobrecarga o descarga)
- Compatible con batería 18560 (no incluida)
- Alimentación por Micro USB
- Salida USB tipo A
- Interruptor de encendido y apagado
- Voltaje de entrada de 5-8 V
- 3 Salidas de 3 V y 1 A
- 3 Salidas de 5 V y 2 a
- Indicación de LED (verde significa carga completa, roja)
Gracias a este cargador 18650, dispones de 5V y 3V para poder alimentar tus proyectos. Es capaz de suministrar hasta 2A.
La placa tiene 3 salidas a 5V (hasta 2A) y otras tres salidas a 3V (hasta 1A). Puedes soldar directamente los cables o bien soldar pines dupont macho para usar cables. Además, dispones de un conector USB/A hembra para usar un cable USB estándar (no incluido). El conector USB dispone de un interruptor ON/OFF.
Para cargar la batería, la placa tiene un conector micro USB. Usa un cargador de móvil, un ordenador, una fuente de alimentación, etc. Tienes un LED que se ilumina rojo mientras la batería se esta cargando, y cambia a verde cuando está cargada.
Puedes usar baterías 18650 de hasta 68mm de altura. Queda perfectamente encajada gracias a los conectores que tiene integrado el portapilas.
IMPORTANTE: se debe tener cuidado al colocar la polaridad de la batería. El positivo va pegado al conector USB/A. Si se coloca al revés la pila, quemarás el chip cargador.
ESPECIFICACIONES TÉCNICAS
- Protección de la batería (sobrecarga o descarga)
- Batería: 18650 (no incluida)
- Indicación de LED (verde significa carga completa, roja)
- Voltaje de entrada; 5~8V (micro USB)
- 1 interruptor de control de salida USB
- Voltaje de salida: 5V x3 (hasta 2A), 3V x3 (hasta 1A)
- Dimensiones: 98x29mm
La compra incluye
- Shield cargador de bateria 18650 con proteccion para arduino, raspberry y otros
