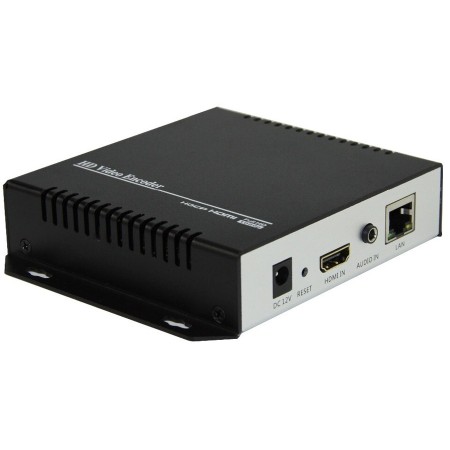

Video Server Streaming H.264 Hd encoder Hdmi TCP/IP
Con este dispositivo puedes convertir cualquier salida de HDMI en un servidor de streaming de video por IP. Permite compresión de video H.264 / MPEG-4. Compatible con los protocolos RTMP / RTSP / UDP / HTTP.
- Admite una entrada HDMI de un canal y una en bucle
- Soporta entrada de audio de 3.5mm.
- Compatibilidad con la codificación de audio MPEG1 Audio Layer2
- Control de velocidad de código CBR / VBR 16 kbit/s - 16 Mbit/s
- Interfaz de red compatible en modo dúplex completo 1000M
- Admite HTTP, UTP, RTSP, RTMP, ONVIF, unidifusión y multidifusión.
- Apoyo a la gestión web.
- Admite la configuración de resolución
- Admite el cambio entre audio monofónico y estéreo.
- Admite la decodificación del decodificador
- Admite la transmisión en LAN y WAN.
El codificador de video HD (entrada HDMI) es nuestro nuevo dispositivo profesional de codificación de audio y video HD con funcionalidad potente, que admite codificación H.264, datos de transmisión doble. Está equipado con 1 canal de entrada HDMI, y soporte de formato de perfil de alto perfil MPEG-4 AVC / H.264 y perfil principal formato de código. Su alta integración y su diseño rentable hacen que este dispositivo sea ampliamente utilizado en una variedad de sistemas de distribución digital tales como terminales digitales de televisión por cable, digital terrestre y satelital, etc.
Se puede integrar en un solo chasis 3U, el cual se puede insertar con 16 unidades de codificadores HD, con el uso de fuentes de alimentación duales para que el sistema sea más estable.
Compatible con decodificación VLC
Trabaja con RTMP / HTTP / RTSP / UDP / RTP Stream Protocolos y ONVIF. Además, el Encoder funciona con la plataforma de transmisión en vivo en línea, como YouTube, Ustream, Twitter, etc.
ESPECIFICACIONES
Input:
- Video: 1 canal de entrada HDMI (version 3.6), soporta HDCP
- Resolution: 1920×1080_60i/60P?1920×1080_50i?1280×720_60p 1280×720_50p etc.
- Codificacion: H.264/AVC Alto perfil nivel 4.0(HD)
- Velocidad de datos 0.8Mbps ~ 12Mbps
- Tasa de datos control CBR/VBR
- Tipo GOP: ajustable
- Pre-procesamiento de video: Desentrelazado, reducción de ruido y afilado
- Nota: GOP: Grupo de imágenes
Audio
- Codificación de formato de audio AAC MP3
- Velocidad de muestreo: La velocidad de muestreo adaptable y de salida es opcional
- Bit-rate 32K,44.1K,48K,64K,96K,128K,160K,192K
- Exactitud de muestreo 24 bit
- Velocidad de datos de audio 64Kb / s ~ 384Kb / s
Sistema
- Interfaz RJ45: 1000M
- Programa de streaming de protocolo HTTP, UTP, RTSP, RTMP, ONVIF
- Panel de control Panel WEB
- Actualización permitida: cargando archivos al tablero
General
- Dimensiones (W× L× H) 170*130*30mm
- Chasis para múltiples canales
- Estructura 3U , soporta 16 canales de codificadores
- Peso 0.65KG
- Temperatura de trabajo: 0~45°C
- Temperatura de almacenamiento: -20~80°C
- Voltaje de alimentación DC 12V 1A
- Consumo: 5W
LA COMPRA INCLUYE
- Encoder HDMI H264
- Manual
- Fuente de alimentación 12V 1A
