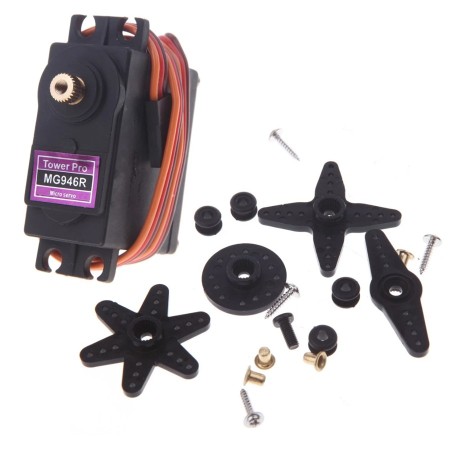

Servo motor MG946R torque 13kg
Servo robusto, de alto rendimiento, compacto, con engranajes de nylon, tamaño estándar, incluye accesorios y tornillos para montaje en cualquier proyecto de robótica.
El servo MG946R con reducción de nylon y notable robustez es ideal para proyectos de brazos robóticos, bípedos o artrópodos en general. Puede rotar aproximadamente 180° (90° en cada dirección).
Tiene la facilidad de poder trabajar con diversidad de plataformas de desarrollo como Arduino, PICs, Raspberry Pi, o cualquier microcontrolador.
Para su uso con Arduino, recomendamos conectar el cable naranja al pin 9 o 10 y usar la Librería "Servo" incluida en el IDE de Arduino. Para la posición 0° el pulso es de 0.6ms, para 90° es de 1.5ms y para 180° 2.4ms.
Posee un conector universal tipo "S" que encaja perfectamente en la mayoría de los receptores de radio control incluyendo los Futaba, JR, GWS, Cirrus, Hitec y otros. Los cables en el conector están distribuidos de la siguiente forma: Café = Tierra (GND), Rojo = VCC (5V), Naranja = Señal de control (PWM).
Se recomienda alimentar por separado el microcontrolador y los servos, ya que el ruido eléctrico puede dar lugar a errores en la ejecución del programa, o en todo caso agregar un capacitor de 100uF entre 5V y GND.
Especificaciones
- Stall Torque: 10.5Kg/cm (4.8V); 14Kg/cm (6.0V)
- Velocidad de Funcionamiento: 0.20seg/60º (4.8V sin carga); 0.17seg/60º (6V)
- Ancho del pulso: entre 600uS y 2400uS
- Temperatura de Trabajo: 0ºC hasta +55ºC
- Dead Band Width: 20useg
- Voltaje de Operación: 4.8-7.2 Volts
- Cable de conexión de 300mm
- Con engranajes de nylon.
- Dimensiones: 40.7*19.7*42.9 mm
- Peso: 55 gramos
La compra incluye
- Servo Motor MG946R
- Accesorios
