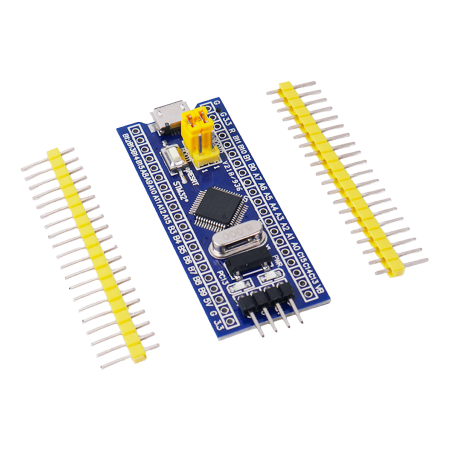

Modulo Desarrollo Stm32f103c8t6 Blue Pill Stm32
- Interfaz SWD: soporte para simulación, descarga y depuración.
- Interfaz USB Mirco: fuente de alimentación y comunicación USB
- Interfaz USART1: USART1 puede usar para programar, o comunicación.
- Interfaz de pin MCU: Conduce a todos los pines del puerto de E / S.
- Interfaz de potencia y salida de 5, 5V y 3.3V.
- LED de alimentación (PWR): indicador de estado.
- El LED de usuario (PC13): facilita la prueba de salida de E / S o ejecuta el programa.
- Botón de reinicio: chip de reinicio para el programa de usuario.
- 8 M Cristal: puede configurar la frecuencia para sincronizar el sistema a 72 MHz.
- 32.768 KHz Cristal: Disponible para RTC incorporado o para calibración.
Esta increíble y potente tarjeta aporta a tus proyectos una gran cantidad de posibilidades, ya que es programable desde IDE de Arduino, además ofrece una potencia, memoria flash, RAM, pines de entrada y salida, ADC, frecuencia de PWM, Resolución PWM mucho más avanzada que un Arduino. A continuación se enumeran las características de esta potente placa:
- Chipset alternativo: CH32F103
- ARM 32-bit Cortex-M3 CPU Core
- Trabaja a una frecuencia de 72 MHz (1.25 DMIPS/MHz)
- 64 Kbytes de memoria Flash
- 20 Kbytes de SRAM
- RTC integrado y entrada de batería de respaldo para el RTC, ya que permite, por ejemplo, guardar datos con timestamp sin usar placas externas
- Modo Sleep, Stop y Standby
- 26 entradas y salidas digitales, la mayoría tolerantes a 5V
- Interrupciones en todas las I/O
- 2 conversores A/D de 12-bit de 1 us, (10 entradas analógicas)
- 7 temporizadores
- 2 interfaces I2C
- 3 interfaces USART
- 2 interfaces SPI
- Interface CAN
- Micro USB para alimentación de la placa y comunicaciones
- Se puede debuggear con SWD (con ST-Link V2)
- Dimensiones: 53 x 22 mm
La compra incluye
- Modulo Desarrollo Stm32f103c8t6 Blue Pill Stm32
- Juego de pines macho separable
