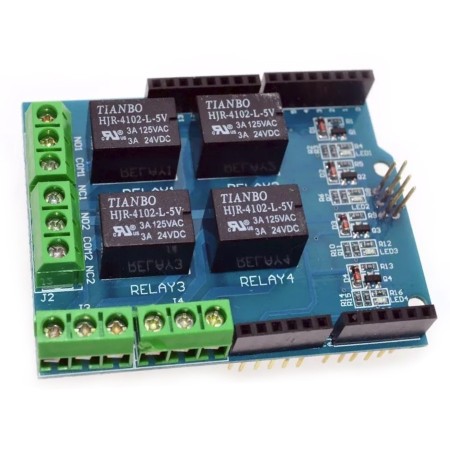

Shield de 4 salidas de rele Compatible arduino uno
Un Shield Arduino que te permite manejar cuatro relés directamente desde un Arduino, para controlar luces o motores o sencillos interruptores.
Permiten conmutar hasta 120 VAC / 24 VDC con un máximo de 3A por circuito.
Se trata de un Shield de potencia de control de señal de corriente que se usa comúnmente en diferentes tipos de proyectos, cuenta con 4 reles lo que permite que los dispositivos de control de un solo chip de alta potencia se utilicen ampliamente en el sistema SCM, ideal para hacer un proyecto de hogar inteligente, se puede conectar directamente a Arduino, compatible con varios tipos de placas base como UNO, MEGA, Leonardo, eliminando los problemas del cable de conexión.
Características
- Interfaces y forma estándar de Arduino Shield
- Shield de relé de 5 V y 4 canales para Arduino UNO. Puede usarse con otras placas de expansión Arduino.
- Tarjeta de interfaz de relé de 5 V y 4 canales, y cada una necesita una corriente de controlador de 15-20 mA.
- Equipado con relé de alta corriente, AC120V 3A; DC24V 3A.
- Interfaz estándar que puede ser controlada directamente por microcontrolador (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, lógica TTL).
- 3 orificios de posicionamiento de tornillos M3 para una fácil instalación
- Cierre de contacto normalmente abierto de alto accionamiento (5 V o 3.3 V)
- Indicador de relé integrado (rojo)
Especificaciones
- Tensión de funcionamiento 5 V
- Corriente de funcionamiento 130 mA
- Corriente de conmutación máxima 3A
- Voltaje de la energía: 4.75 ~ 5 V;
- Consumo de energía (a 5 V): 180 mA;
- Capacidades máximas de relé AC 120 V @ 3A, DC 24 V @ 3A
- 70 x 54 x 26 mm (2,76 x 2,13 x 1,02")
- Peso 1,41 oz (40 g)
La compra incluye
- Shield Rele 4 canales para Arduino UNO
