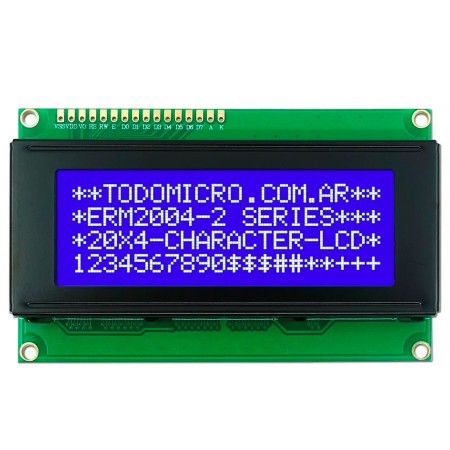

Display LCD 20x4 5V azul
Display LCD 2004 Ideal para proyectos de Arduino y electrónica en general.
- Display LCD alfanumérico de 20x4.
- Backlight tipo LED
- Color azul.
- Caracteres blanco.
- Interfaces paralela. 5 V.
- Controlador compatible HD44780.
- Este chip es 100% compatible con las librerías de arduino.
Conexión pines
- Pin 01 (Ground) Tierra (0 V)
- Pin 02 (Vcc) Voltaje de Operación; 5 V (4.7 V – 5.3 V)
- Pin 03 (VEE) Ajuste de contrastes: mediante un potenciómetro (no incluido, puede ser de 1k-10k)
- Pin 04 (Register Select) Selección del registro, para 0 es comando y en 1 es para datos
- Pin 05 (Read/write) Estado bajo para escribir y estado alto para leer el registro
- Pin 06 (Enable) Envía datos a los pines de datos cuando recibe un flanco de bajada
- Pin 07 (DB0) Pines de datos 8-bit
- Pin 08 (DB1) Pines de datos 8-bit
- Pin 09 (DB2) Pines de datos 8-bit
- Pin 10 (DB3) Pines de datos 8-bit
- Pin 11 (DB4) Pines de datos 8-bit
- Pin 12 (DB5) Pines de datos 8-bit
- Pin 13 (DB6) Pines de datos 8-bit
- Pin 14 (DB7) Pines de datos 8-bit
- Pin 15 (Led+) Backlight VCC (5 V)
- Pin 16 (Led-) Backlight Tierra (0 V)
Características técnicas:
- Backlight led azul, letras blancas.
- Voltaje de Operación: 5 V
- Interface de comunicación: Paralelo 4 u 8 bits
- Color Texto: Blanco
- Backlight: Azul
- Filas: 4
- Columnas: 20
La compra incluye
- Display LCD 20x4 5 V azul
- Anchura
- 6cm
- Profundidad
- 9.8cm
- Peso
- 70g
- Voltaje de operación
- 5v
- Altura
- 1.5cm
