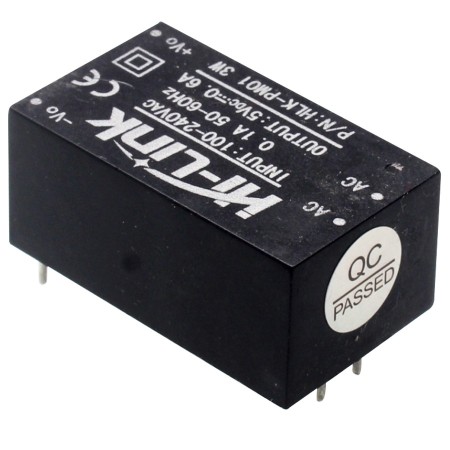

Fuente Switching Aislada Compatible con Arduino Hlk-pm01 220-5v 600mA
- Tamaño compacto
- Ideal para todo tipo de prototipado
- Compatible con Arduino Raspberry o cualquier Microprocesador
Pequeño transformador de 220V a 5V de 600mA para aplicaciones donde se necesita ahorrar espacio y al mismo tiempo tener una fuente de alimentación eficiente.
El transformador viene encapsulado con todo lo necesario para su funcionamiento, con una entrada de 220V y una salida de corriente continua regulada y estabilizada a 5V.
Ideal para alimentar microcontroladores o pequeños circuitos.
Especificaciones:
- Modelo HLK-PM01
- Mini tamaño: 3,4 x 2 x 1,5 cm (Longitud *Anchura* Altura).
- Peso: 21g
- Tensión nominal de entrada:100-240 V AC
- Máxima corriente de entrada: ≤ 0,2 A
- Tensión de entrada máxima: ≤ 270 V AC
- Arranque lento de entrada: ≤ 50 mS
- Entrada baja tensión eficiencia: Vin = 110 V CA, La salida a plena carga ≥ 69%
- Rendimiento de alta tensión de entrada: Vin = 220VAc, La salida de carga completa ≥ 70%
- Fiabilidad a largo plazo: MTBF ≥ 100.000 H
- Sin carga tensión de salida: 5 ± 0,1 V CC
- Carga completa tensión de salida: 5 ± 0,2 V DC
- Corriente de salida: ≥ 600 MA
- Regulación de tensión: ± 0,2%
- Regulación de carga: ± 0,5%
- Ondulación de salida y ruido: (MVp - p) ≤ 50 MV.
- Sobrecorriente de salida proteccion -- Salida de la carga máxima de 150-200% A
- Protección contra cortocircuito de salida.
La compra incluye:
- Fuente Switching Aislada Arduino Hlk-pm01 220-5v 600mA
- Anchura
- 2cm
- Profundidad
- 3.4cm
- Peso
- 20g
- Altura
- 1.5cm
