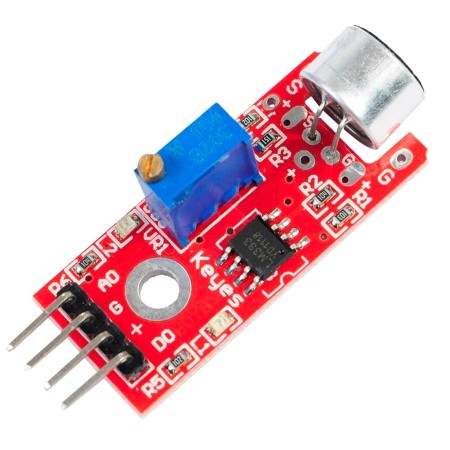

Sensor de sonido microfono analogico y digital
- Sensor capaz de medir la intensidad de sonido.
- Posee una salida digital y otra analógica.
- Util para crear proyectos interactivos o analizadores de sonido.
- Este módulo especialmente diseñado para Arduino
- Permite detectar la intensidad del sonido de forma fácil y rápida.
Se trata de un módulo sensor de sonido basado en un micrófono electret que entrega una salida digital de bajo nivel cuando un sonido supera el valor prefijado con el preset. Tambien dispone de una salida analogica la cual es un bypass de la capsula.
La salida análoga lleva toda la información que está detectando el micrófono en tiempo real. La salida digital se activa cuando el sonido supera un cierto volumen previamente ajustado con el potenciómetro generando un pulso (1 o 0).
Este módulo está compuesto por: un Electret super sensible KY-037, dos salidas: una llamada "Ao", salida analógica. Otra llamada "Do", señal digital de alta o baja que se puede configurar mediante el ajuste del umbral de sensibilidad a través del preset.
Posee 2 leds, uno de los cuales indica que el módulo está alimentado y el otro enciende cuando el sonido supera el nivel prefijado (muy útil para realizar el ajuste).
Especificaciones
- Voltaje de Operación: 5V DC
- Salida analógica
- Ajuste de Thd
- Mic Electret super sensible.
- Luz de encendido
- Luz testigo de salida del comparador
- Interruptor digital salida (0 / 1)
- Material: PCB epoxy
- Dimensiones: 35 x 15 x 14 mm
- Agujero de montaje ø3mm
LA COMPRA INCLUYE:
- Modulo Sensor de sonido microfono analogico y digital
- Anchura
- 1.5cm
- Profundidad
- 3.5cm
- Voltaje de operación
- 5v
- Altura
- 1.4cm
