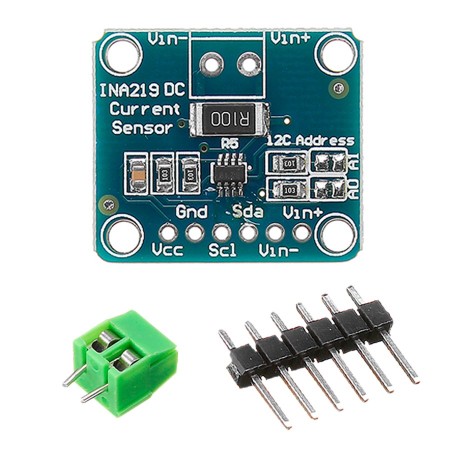

Modulo medidor de voltaje y corriente hasta 26V y 3.2A
- El módulo INA 219 es el módulo con la mayor precisión y el tamaño más pequeño de la industria, mide la corriente y tensión con una precisión del 1%
-
El registro de calibración programable se puede leer en Amperes y la potencia en Watts.
-
Se pueden promediar hasta 128 muestras para filtrar eficientemente el ruido o corrientes parásitas.
-
La interfaz I2C tiene una configuración de tiempo de espera, no solo para evitar el bloqueo del bus, sino que también proporciona un modo de alta velocidad para cumplir con los requisitos de comunicación de hasta 3,4 MHz.
El Módulo INA 219 es una solución integral de monitoreo de energía. En lugar de utilizar un sensor de voltaje y un sensor de corriente, este mide ambos con una precisión del 1% y se comunica digitalmente con el host mediante TWI / I2C.
Es capaz de medir corrientes y voltajes hasta 26V y 3.2A. El preciso comparador de corriente mide el voltaje en la resistencia de detección de 0,1 Ω, 1% para determinar la corriente que fluye.
Las mediciones combinadas de voltaje y corriente permiten calcular la potencia, lo que hace que el INA 219 sea ideal para rastrear la vida útil de la batería o los paneles solares. (Ley de Ohm: P = V . I)
Especificaciones
- Voltaje de alimentación: 3.0 - 5.5 V
- Rango de medición de voltaje: 0 - 26 V
- Rango de medición de corriente: 0 - 3.2 A
- Rango de medición de potencia: 0 - 83.2 W
- Protocolo de interfaz: TWI / I 2
La compra incluye
- Módulo Comparador
- Adaptador bornera
- Pines
- Anchura
- 2.2cm
- Profundidad
- 2.5cm
- Peso
- 0.05g
- Voltaje de operación
- 3.0 - 5.5 V
