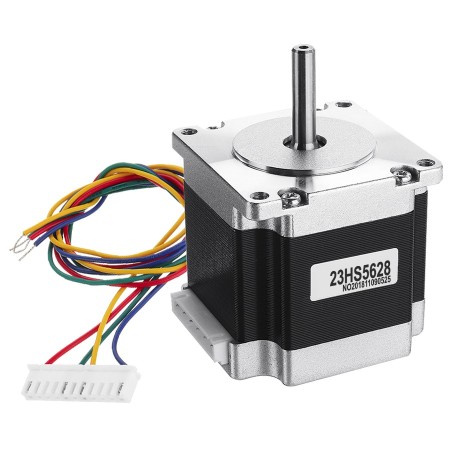

Motor Nema 23 23HS5628 12,6 kg.cm
- Motor paso a paso bipolar Nema 23 con 4 cables y de 1.8º (200 pasos por vuelta).
- Posee eje tipo D.
- Ideal para sistemas CNC.
- Cortadoras láser, grabadores o impresoras 3D.
Características:
Motor de excelente calidad a un bajo costo cuenta con un cuerpo de metal altamente resiente fuerte y duradero.
El eje del motor es redondo, cuenta con una longitud total de 26 mm, de los cuales 20.6 mm están expuestos fuera del cuerpo del motor. Su diámetro es de 6.35 mm. La estructura del eje es multiestilo y puede ser adaptada según la aplicación. El motor cuenta con 4 pines de conexión con cables de 30 cm de largo.
Especificaciones:
- Torque: 12.6Kg/cm.
- Eje tipo D.
- Diámetro del eje 6.35mm
- Longitud del eje 20.6mm
- 200 pasos por revolution y 1.8º
- Precisión del ángulo de paso: + - 5%(paso completo, sin carga).
- Cuerpo de 67mm
- Voltaje por fase 2.5v.
- Corriente por fase 2.8A.
- Conexiones: Rojo: A+. Verde: A-. Amarillo: B+. Azul: B-.
- Longitud del cable: 30 cm
- Temperatura ambiente: 20deg ~ + 50deg.
- Resistencia: 8Ω (± 10%)
- Inductancia por fase 2.5mH
- Precisión de inductancia: +-20%.
- Par de retención: 12N.cm
- Par de frenado: 1.6N.cm
- Inercia del rotor: 34g.cm²
- Resistencia de aislamiento 100MΩ 500V DC
- Precisión de la resistencia: +-10%.
- Fuerza eléctrica 820V AC / Min
- Separación radial 0.02Max (carga 450)
- Juego axial 0,08Max (carga 450)
- Peso del motor: 700 g.
La compra incluye:
- 1 Motor Nema 23 23HS5628
- 1 cables conductores azul verde rojo y amarillo
- Anchura
- 56 mm
- Profundidad
- 56 mm
- Voltaje de operación
- 12v
- Altura
- 56 mm
